New Track Construction

The raised track owned by the club has been in existence for nearly 50 years. It has been maintained by club members but had got well past any further maintenance being cost effective so the decision was made to replace it. Many options were looked at and rather novel solution chosen.



Home

Club Newsletter

Latest "Blast Pipe"

Archive.

Track Operations

Driver training

Safety and Operation

Photos and Videos

At the track

Video Clips

New Track Construction

Useful Links

MEANZ

Model Engineer

Home Model Engine Machinist

Madmodder

Early days at the Petone track

Photo of the raised track from many years ago before a huge storm devastated the Petone foreshore. This caused the local council upgrade the sea defences and and now the harbour cannot be seen in the distance, as it can here.

The state of the  raised track

Although this isn't a recent picture the state of the track can be seen. Apart from one section, it had never been galvanized and being so close to the coast rust was always a problem.

Thursday 6 October - Locks are changed to give the contractors control of access to the site.

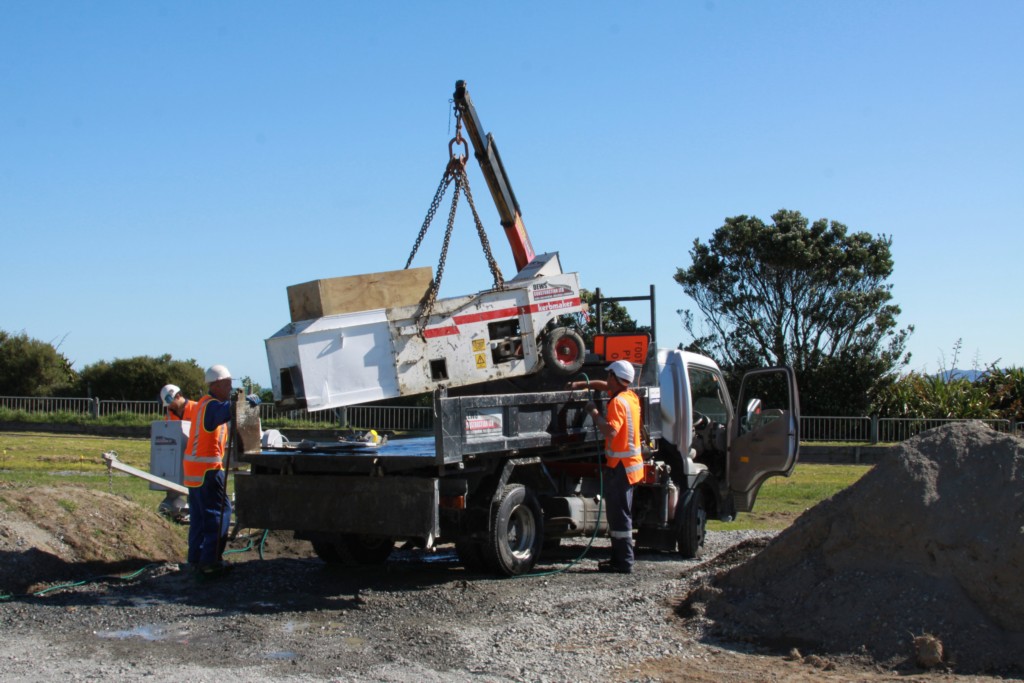

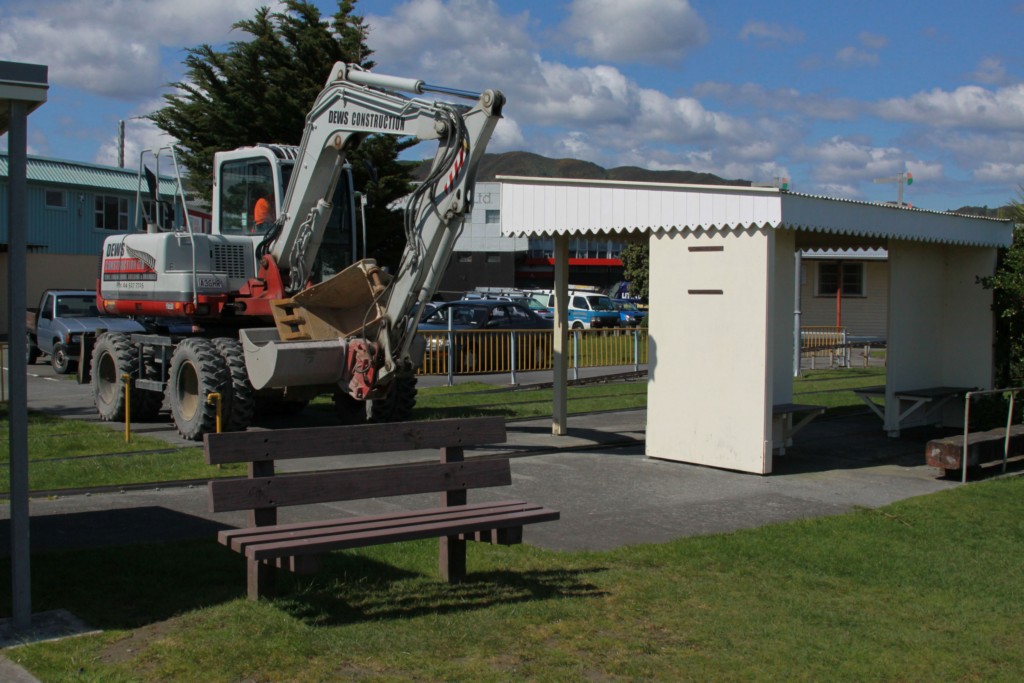

Contractors equipment arrives on site

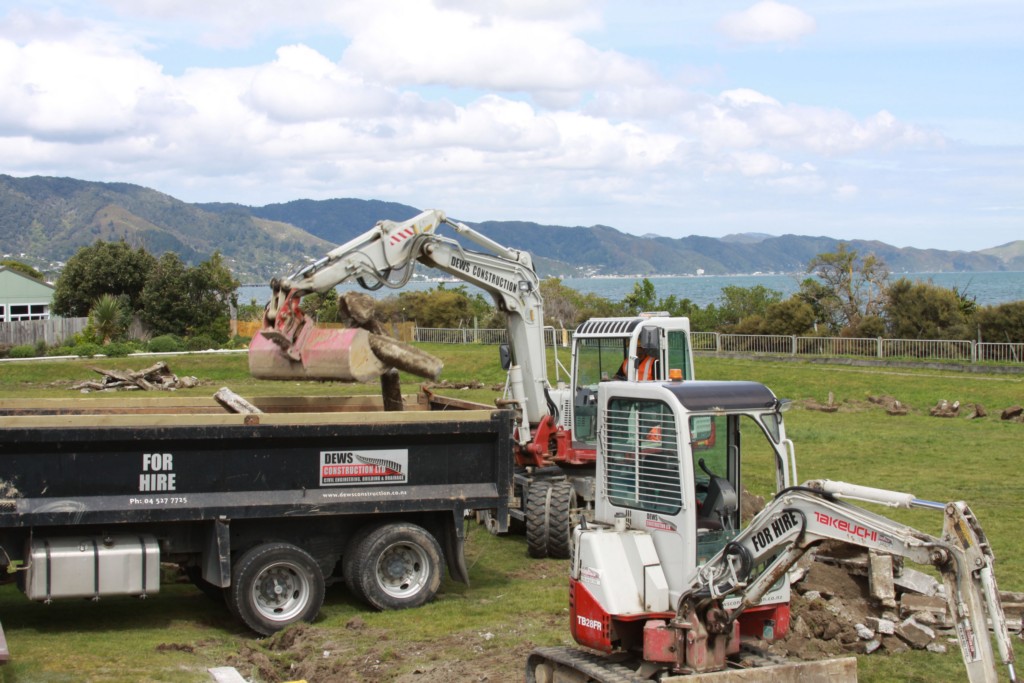

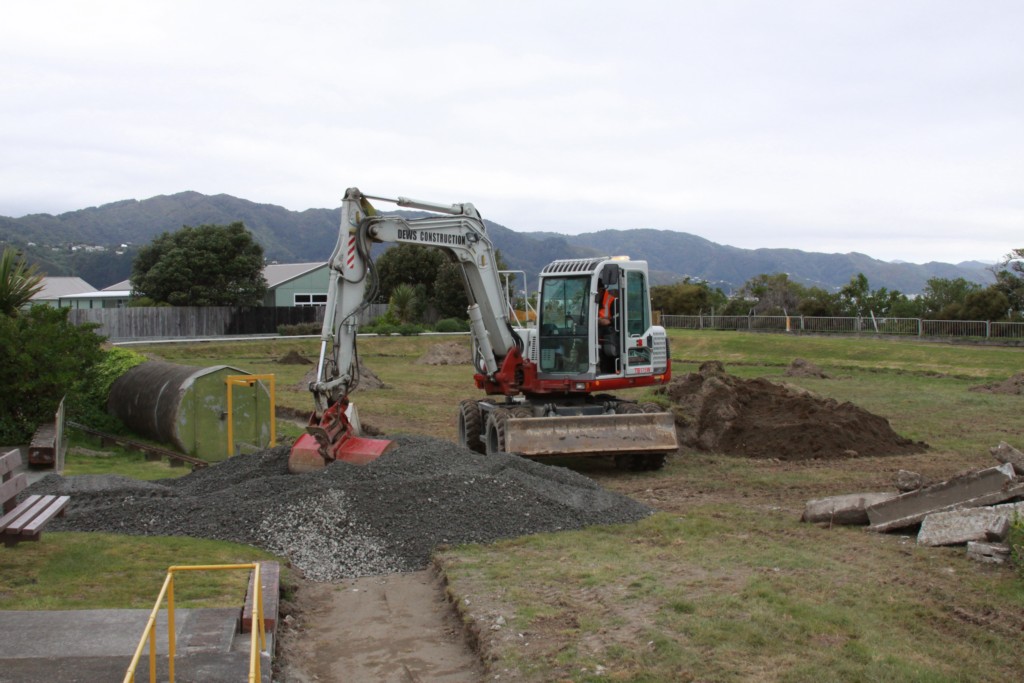

Old line demolished and removed from site

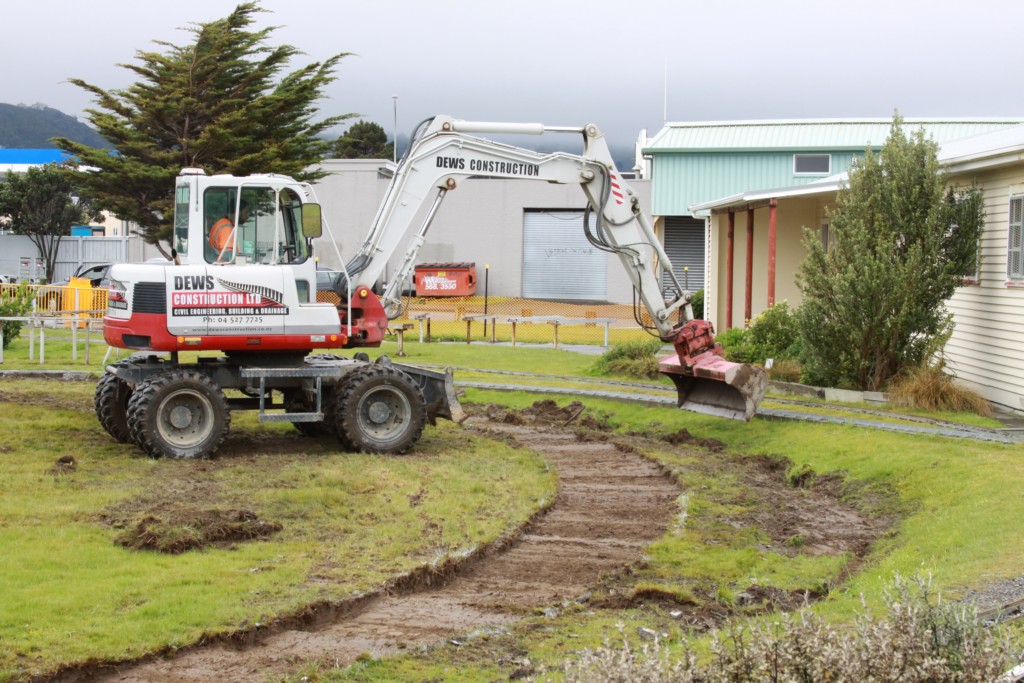

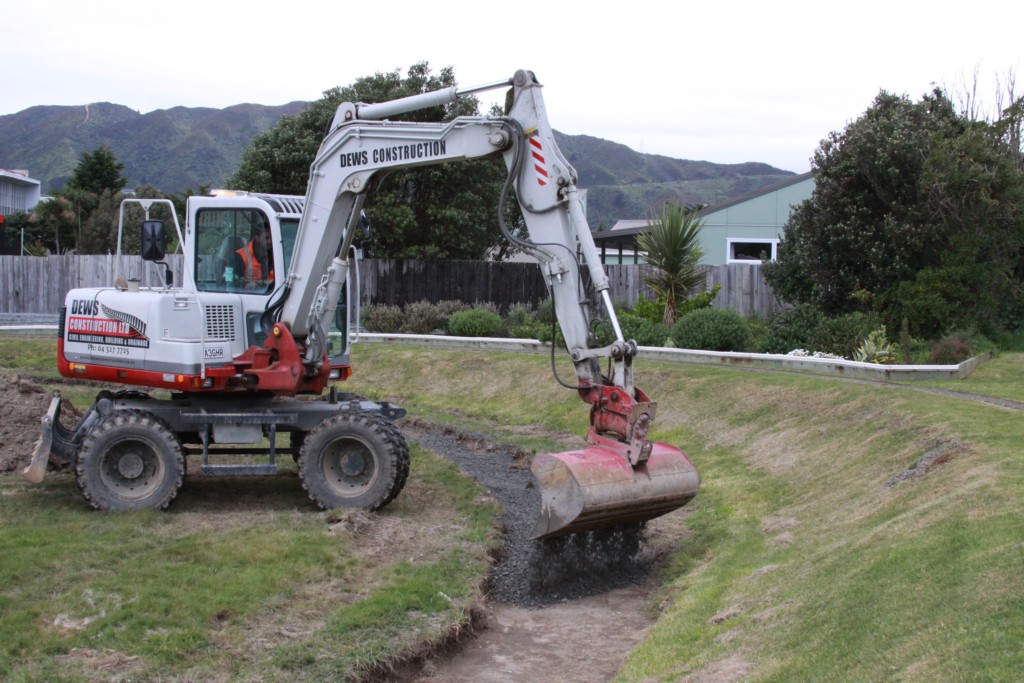

Diggers trench new rail line route

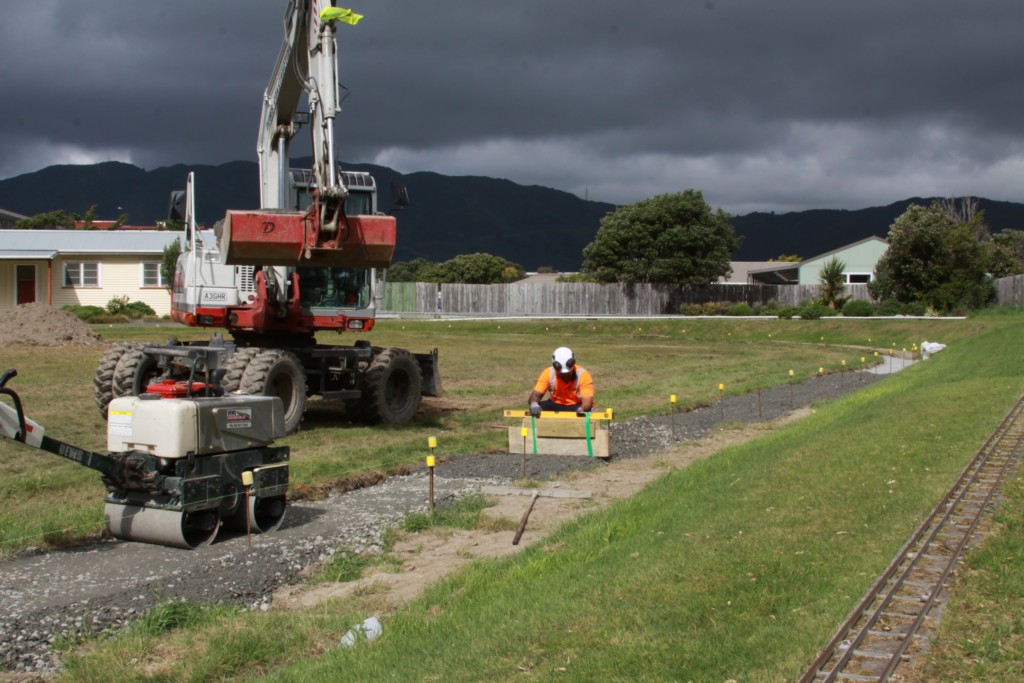

Sand base compacted



Base course delivered





Base course spread ready for rolling

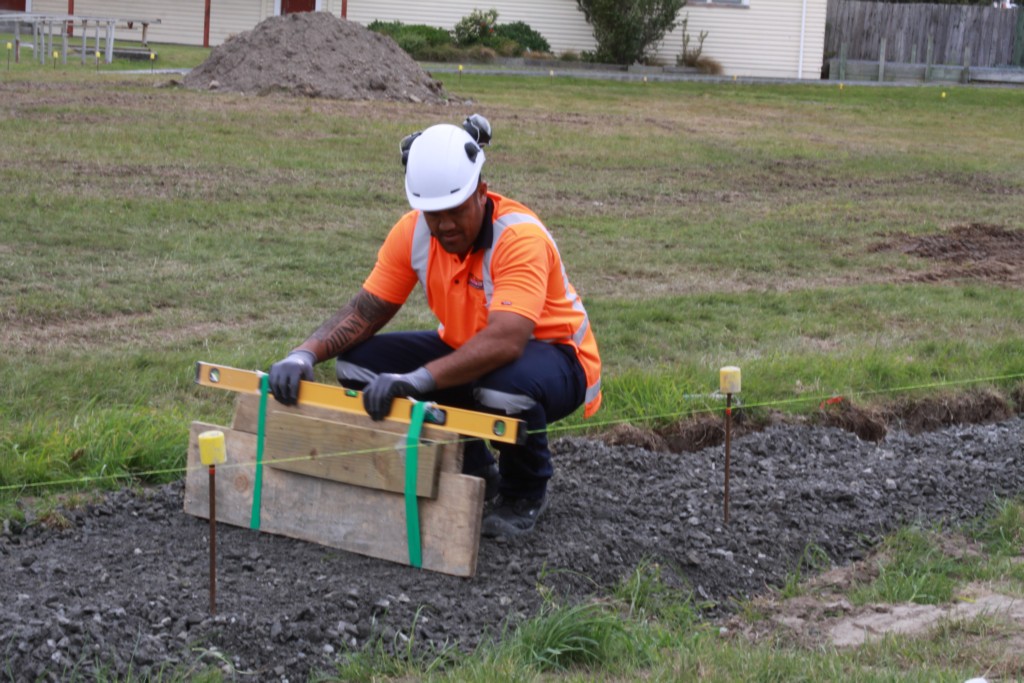

Datum pins and levels set.

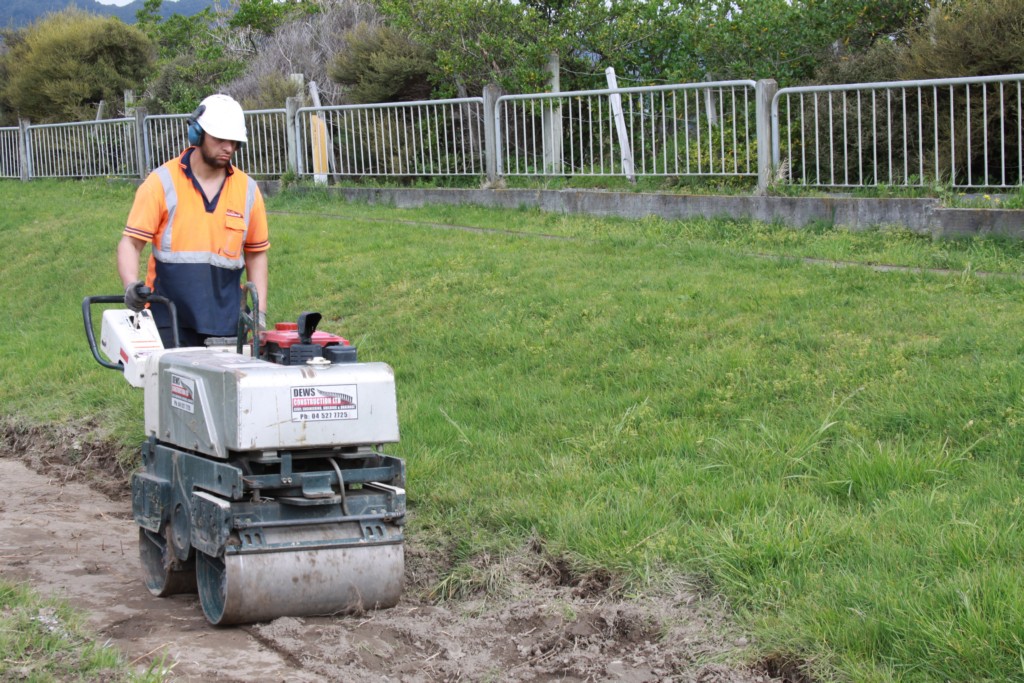

Base course filled and rolled to final height

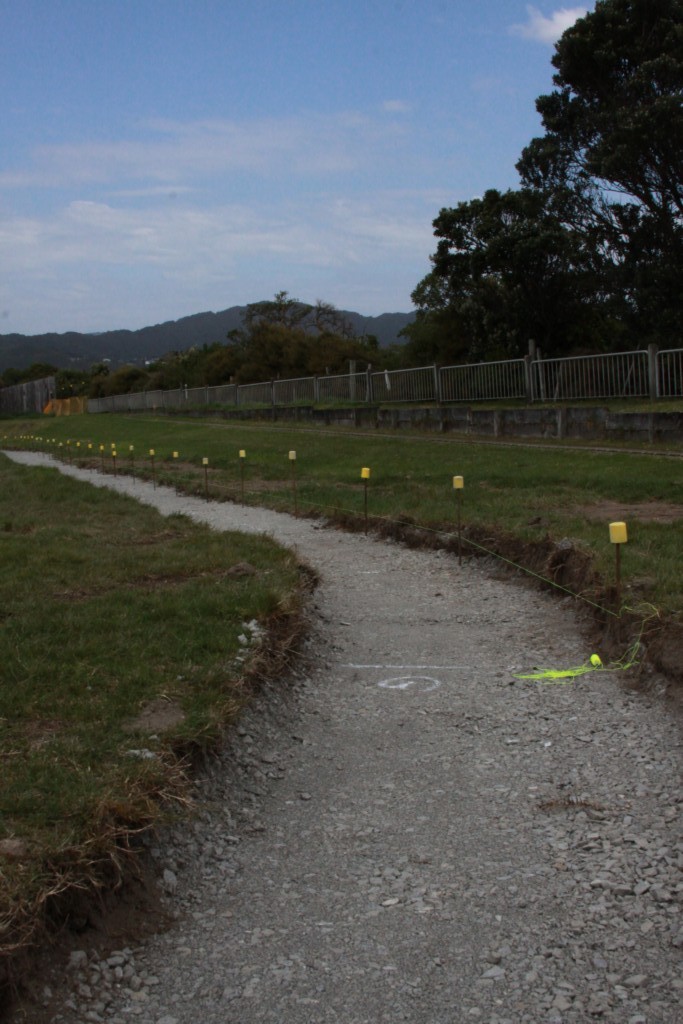

Base course complete

The 'secret weapon'

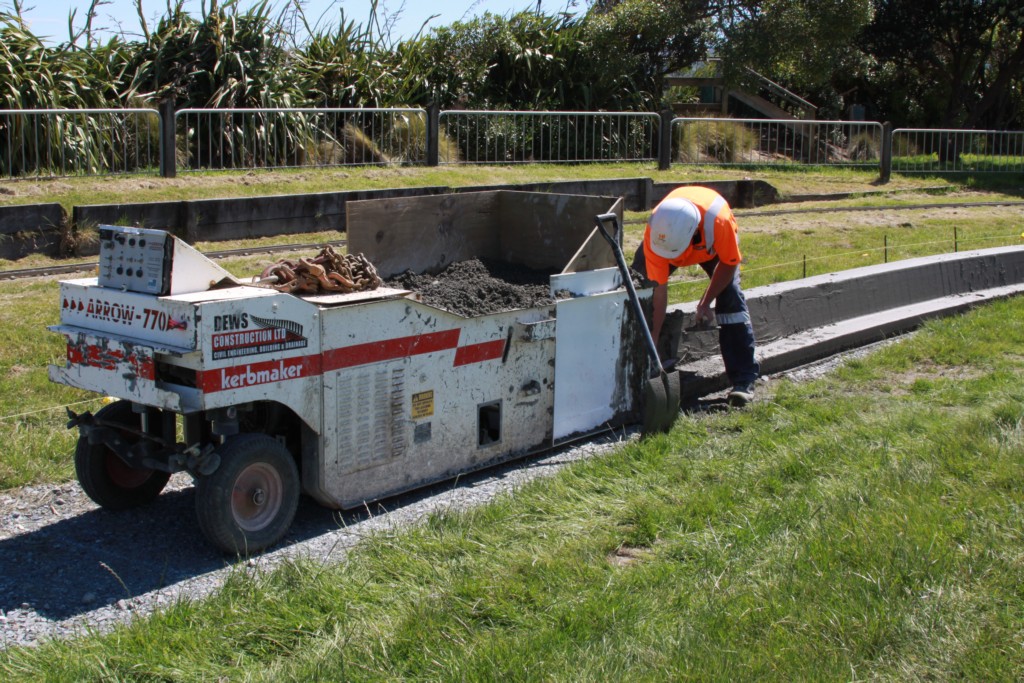

A roadside kerbing machine with template for the raised track plinth manufactured by one of the project team members



Making a start and sorting out teething problems

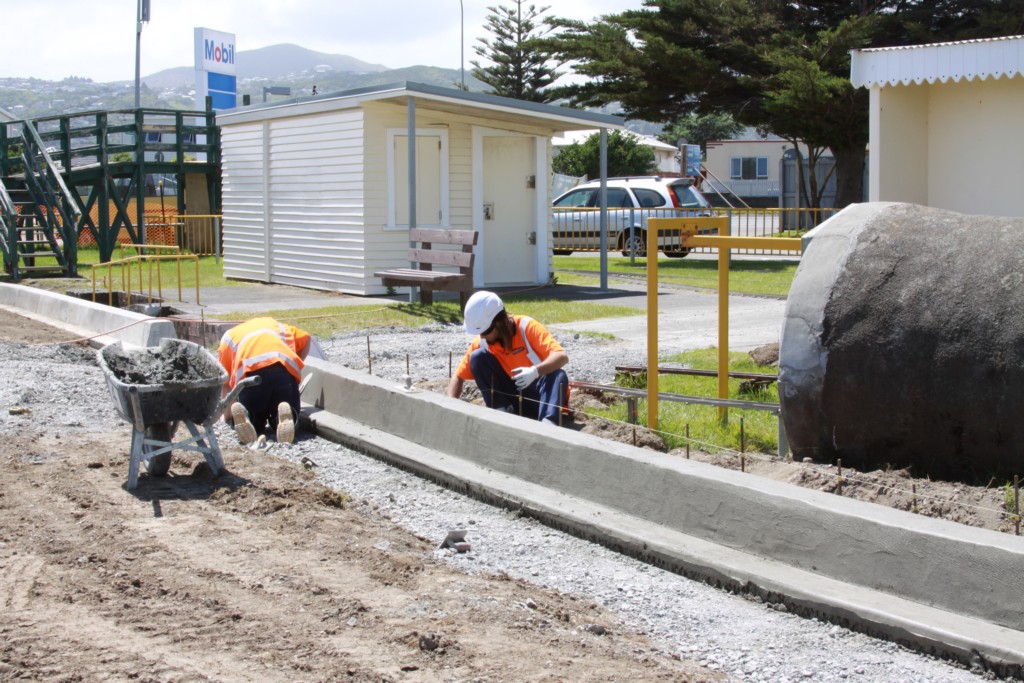

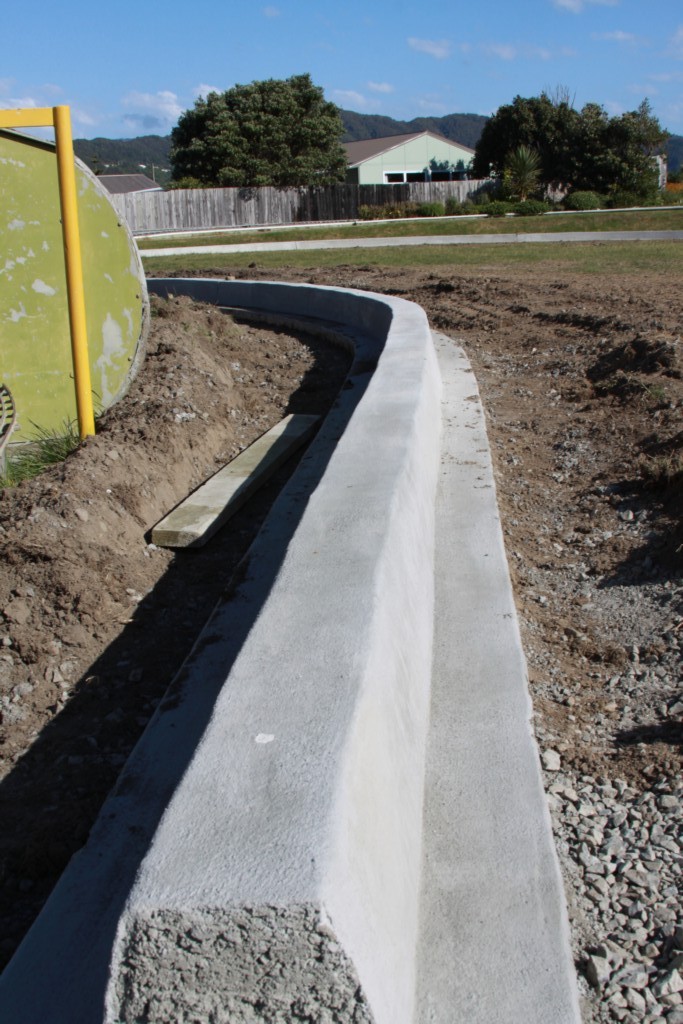

Tidying up

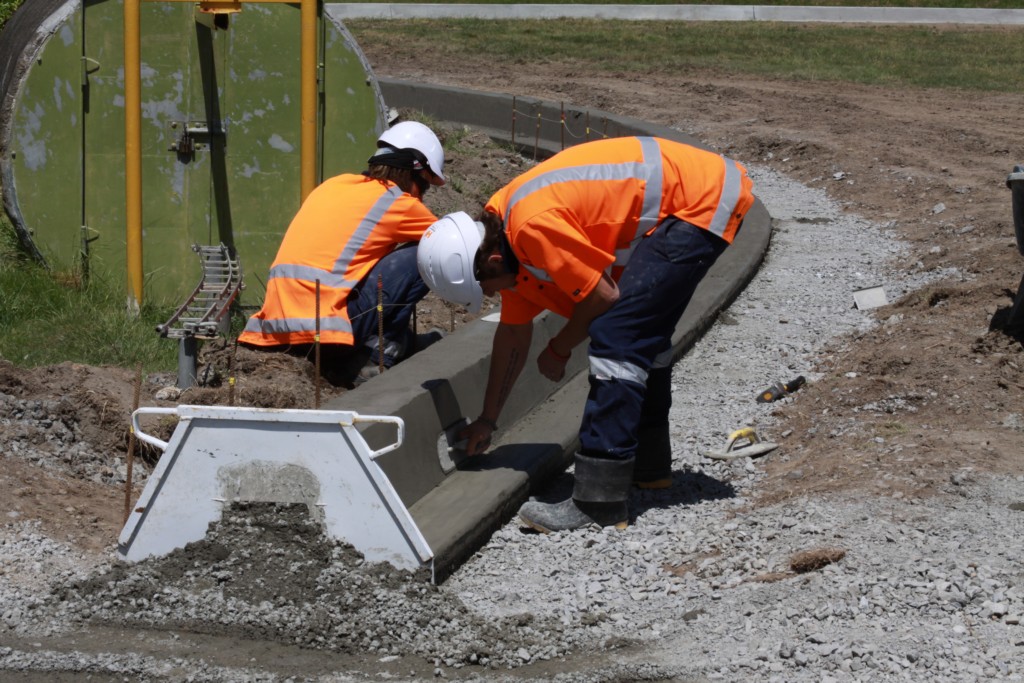

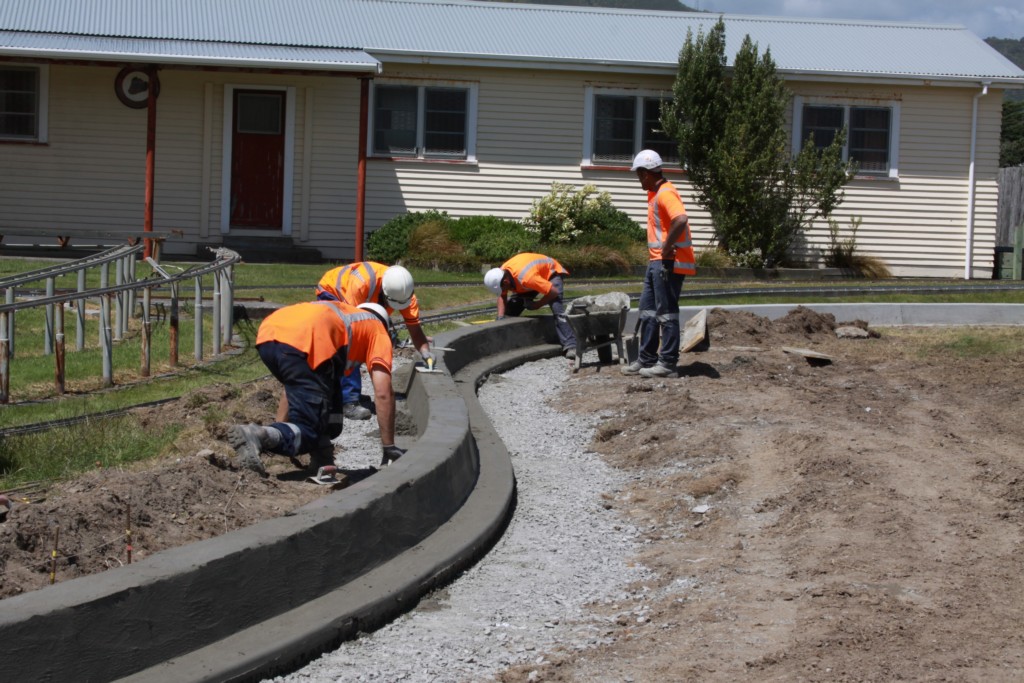

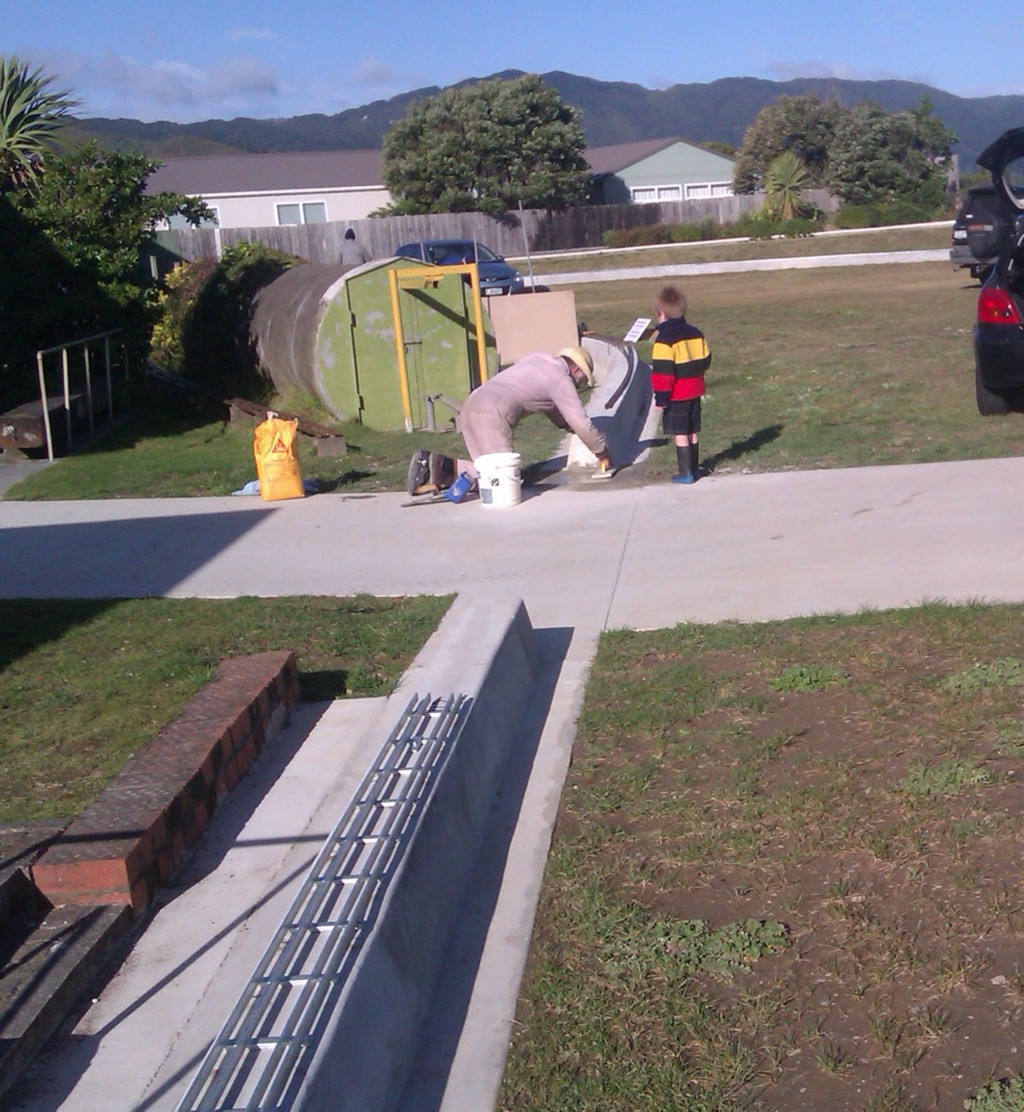

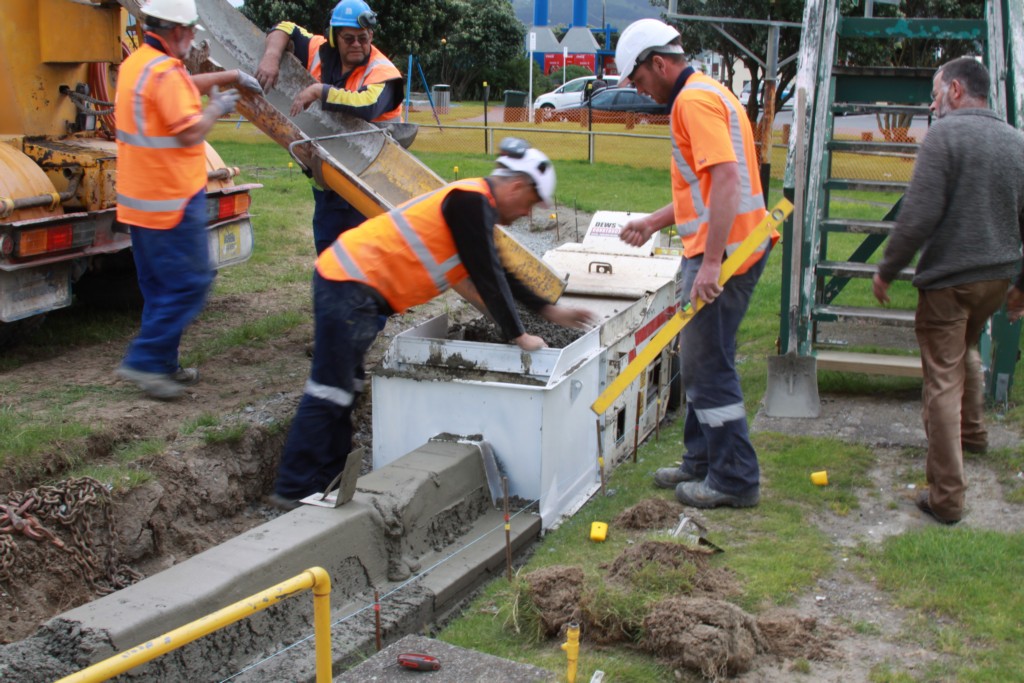

Following the kerbing machine and applying the finishing touches while the concrete is still workable

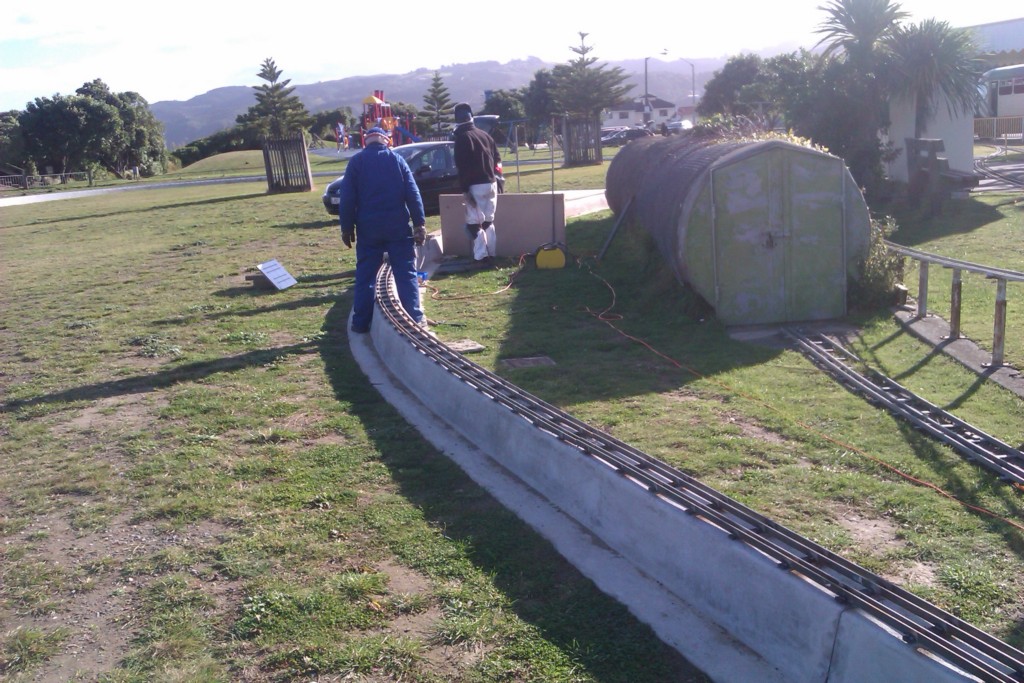

Along the back straight



The new curve approaching the station



Nearing the the end.

The blade cutter in the foreground is used to cut 'stress relievers at intervals along the casting

Just about done

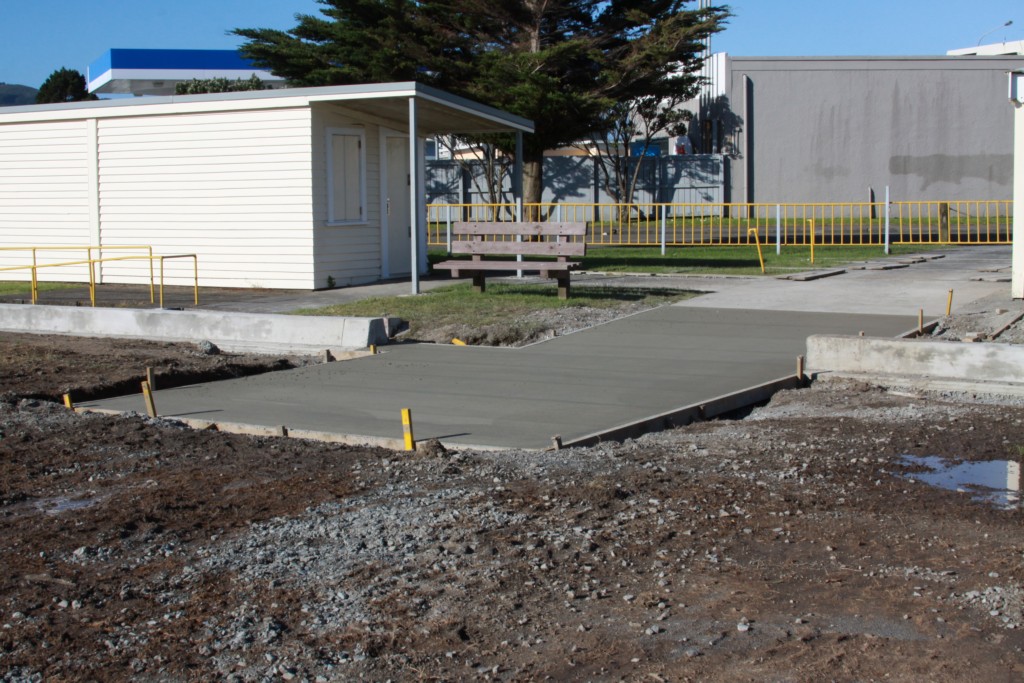

All complete with the new access way just laid

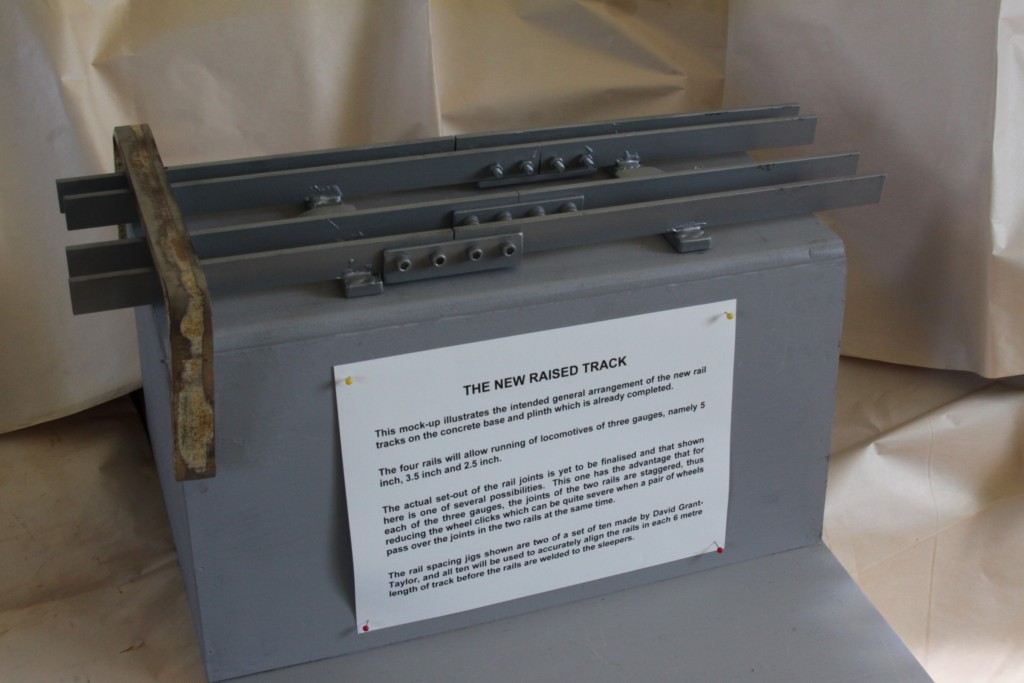

Mock up of the track construction on display at the Waitangi Day open day

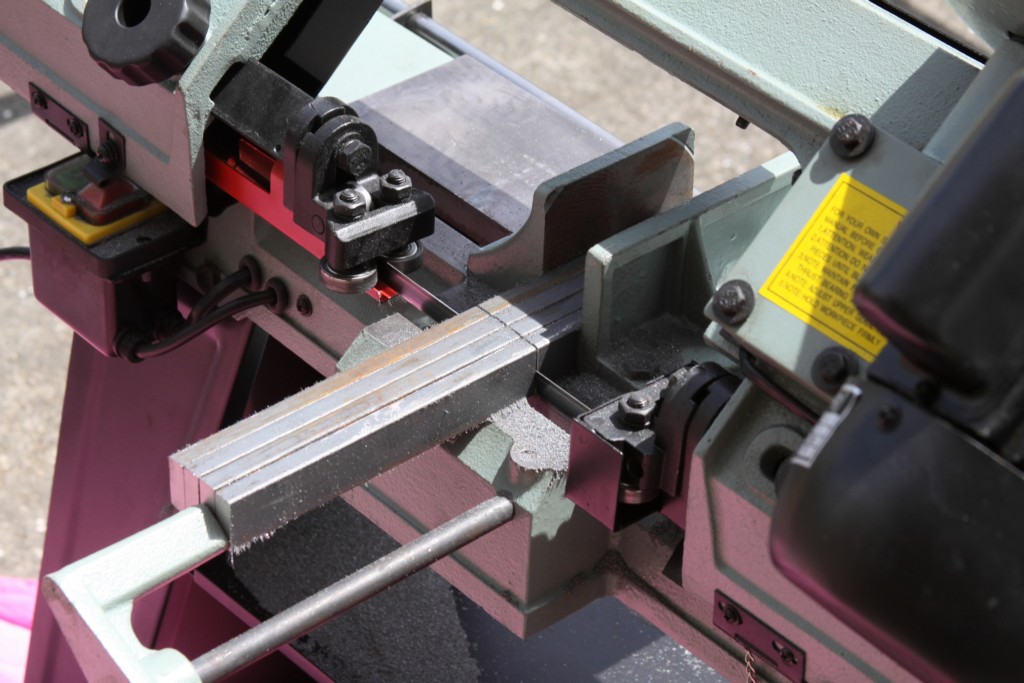

Cutting batches of the 800 sleepers required for the job

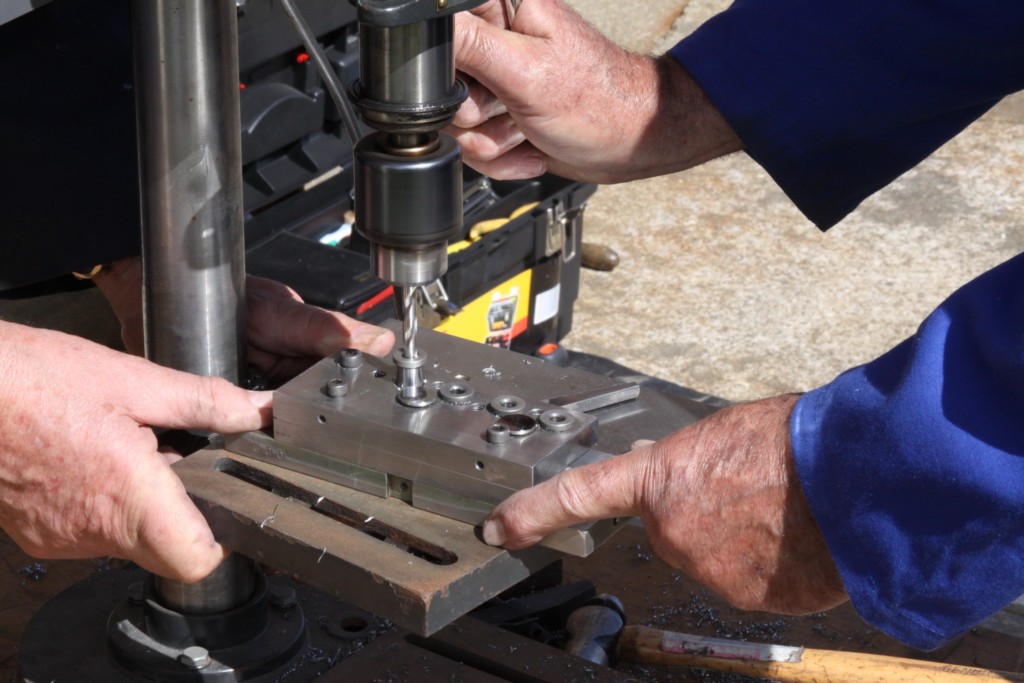

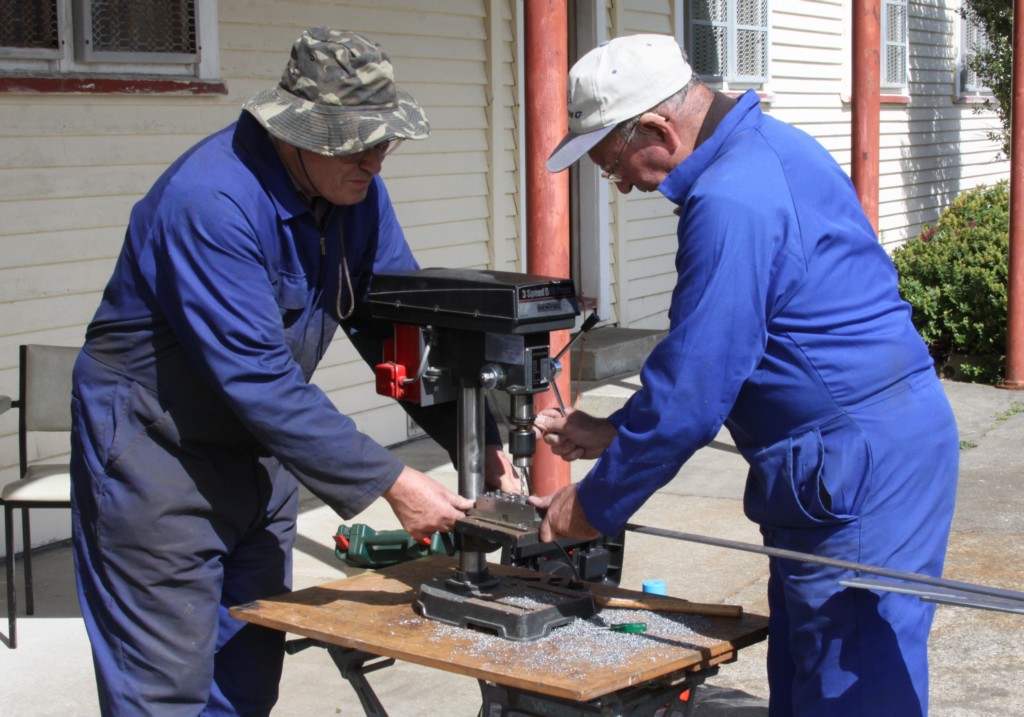

Roy and Ross drilling the rail ends for the fishplates

The track drilling jig

17 March 2012

Track construction starts!! Ross inspecting Dave's first batch of welds prior to setting out the next set of sleepers.

(note the temporary screening. Behind the fence in the background is a public walkway, anybody on the path cannot see the welding flare from close up)

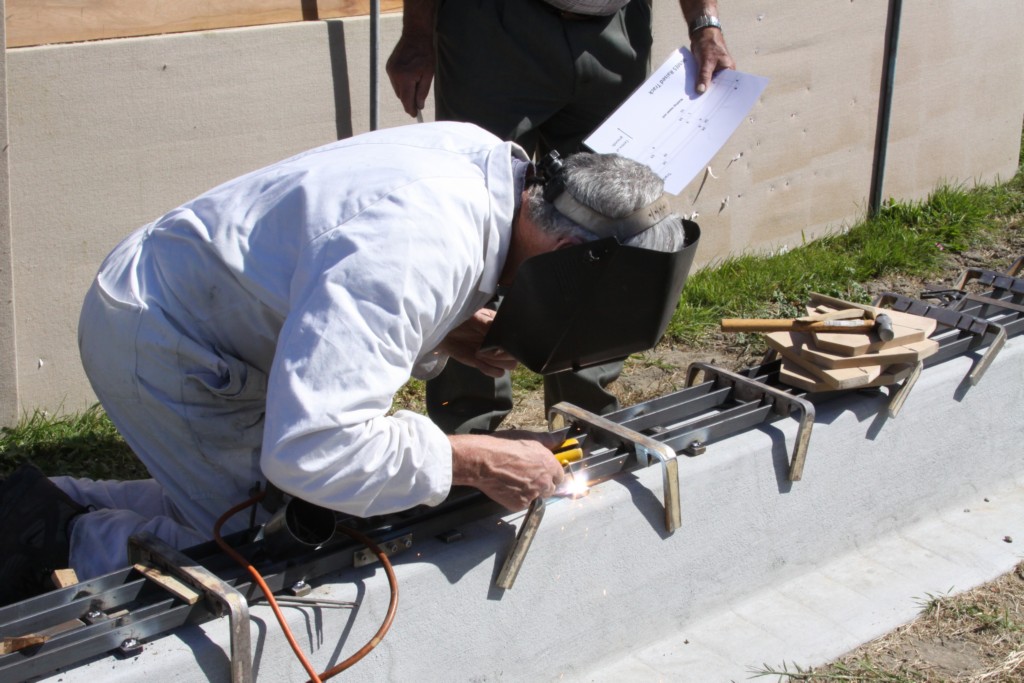

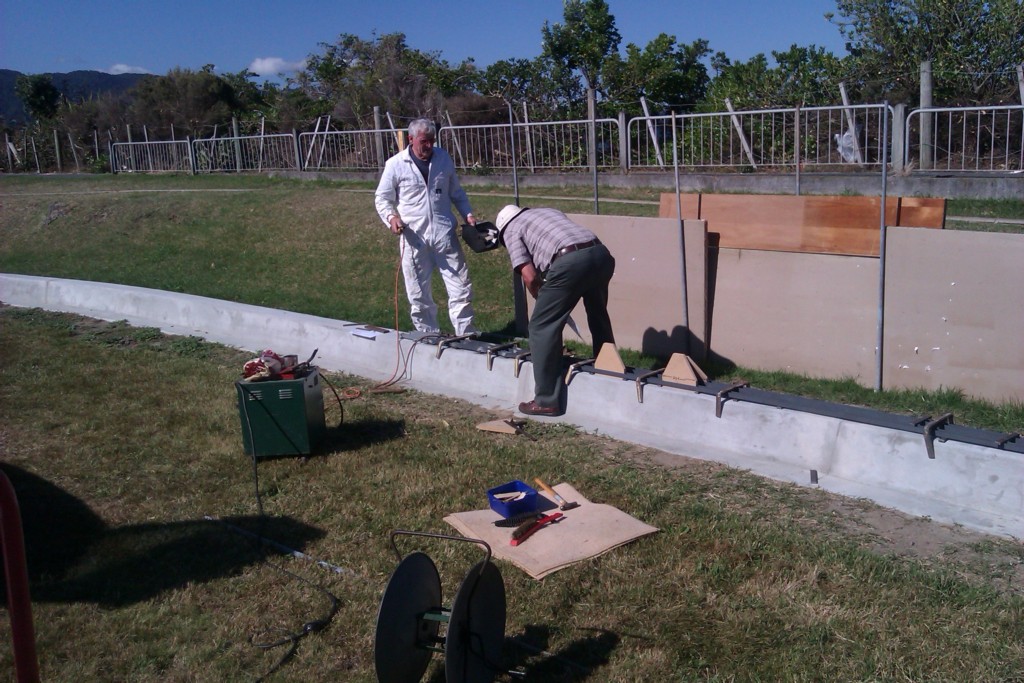

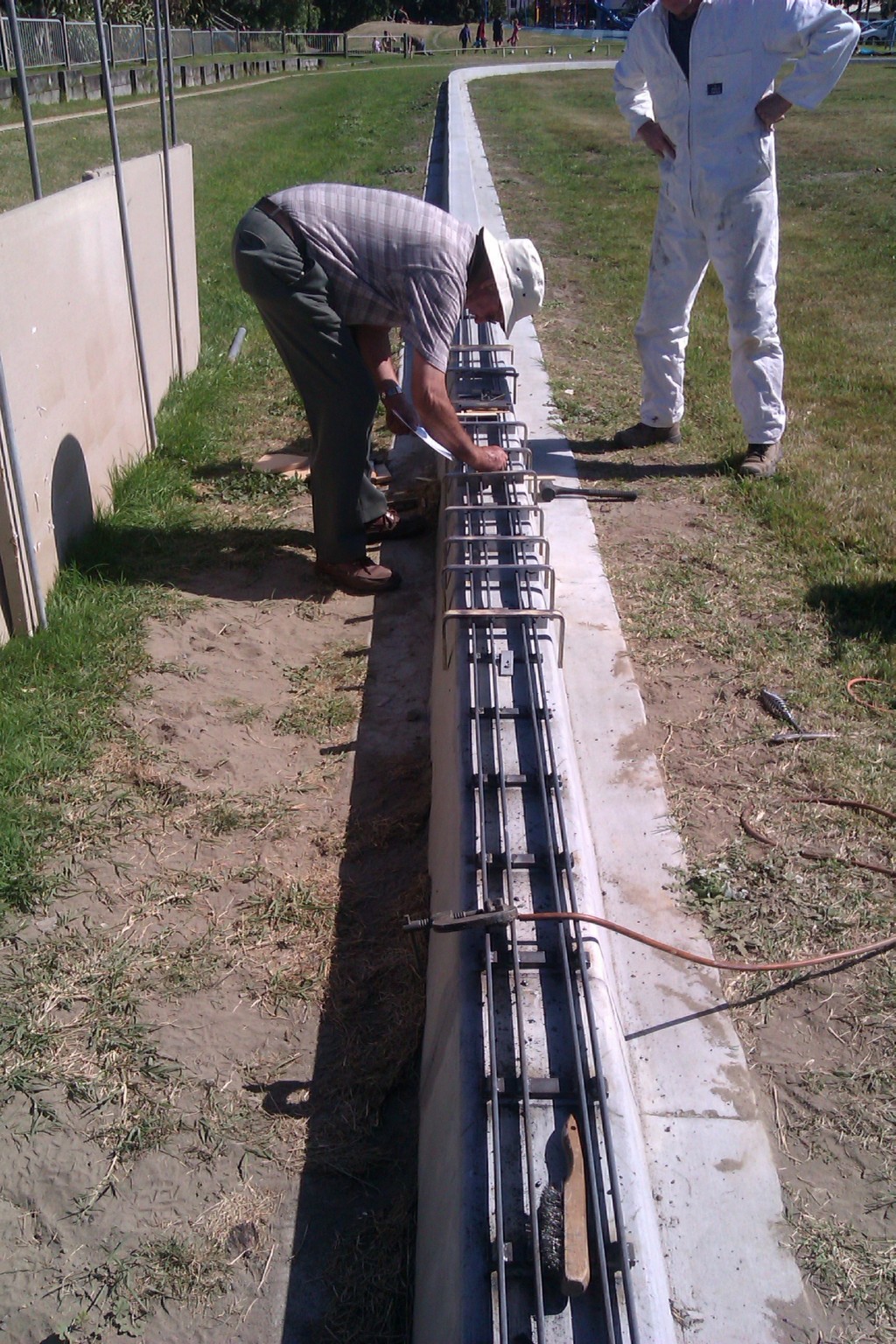

Dave welding while Ross watches on. In Ross's hand is the weld plan, designed to reduce any possible distortion while the welds cool

Nearing the end of the first 6 Metre section of the track. Only another 29 to go

14 April 2012

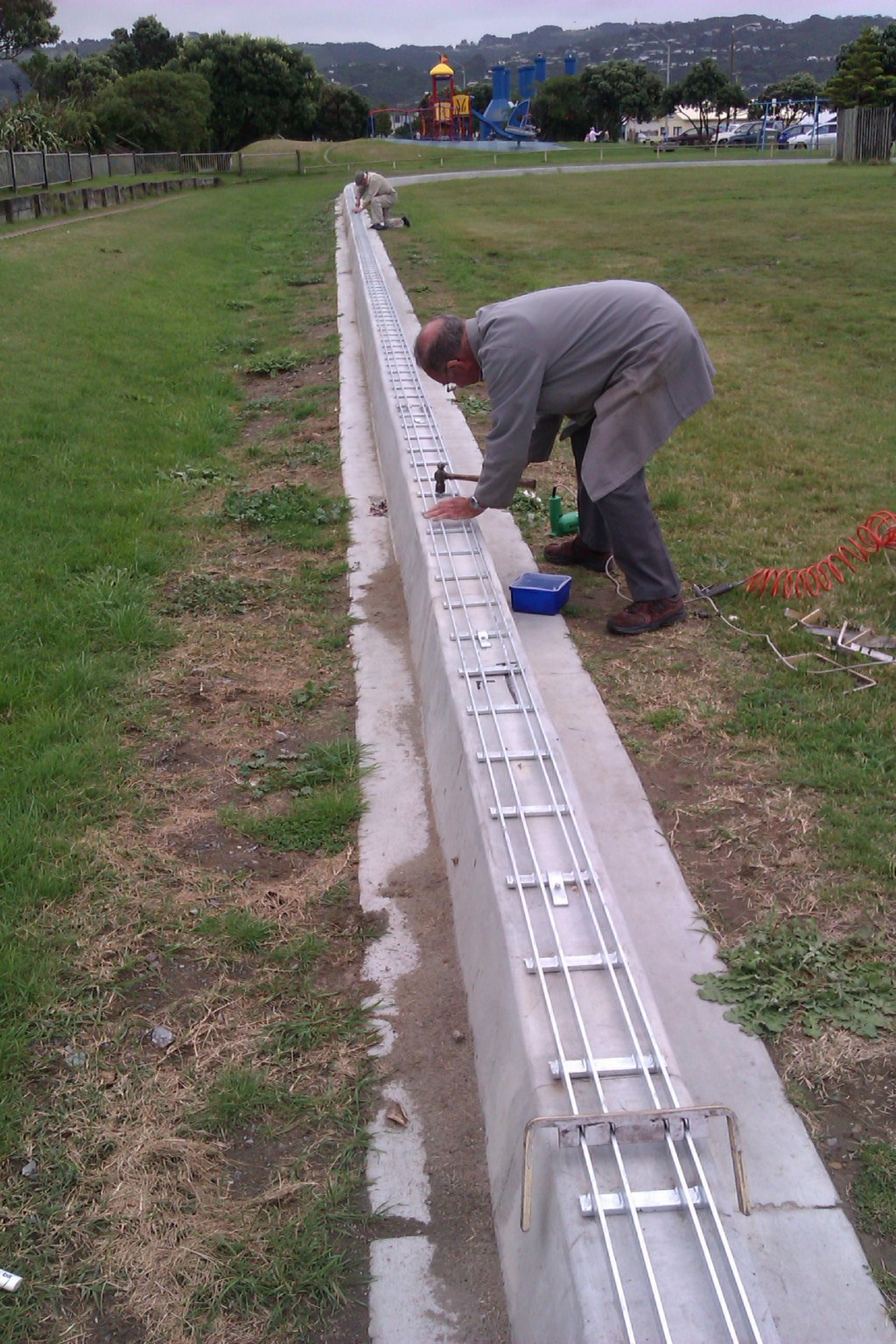

The first sections back from being galvanized. Ross "persuading" the hold down anchor into its locating hole. Phil in the background joining the section fishplates.

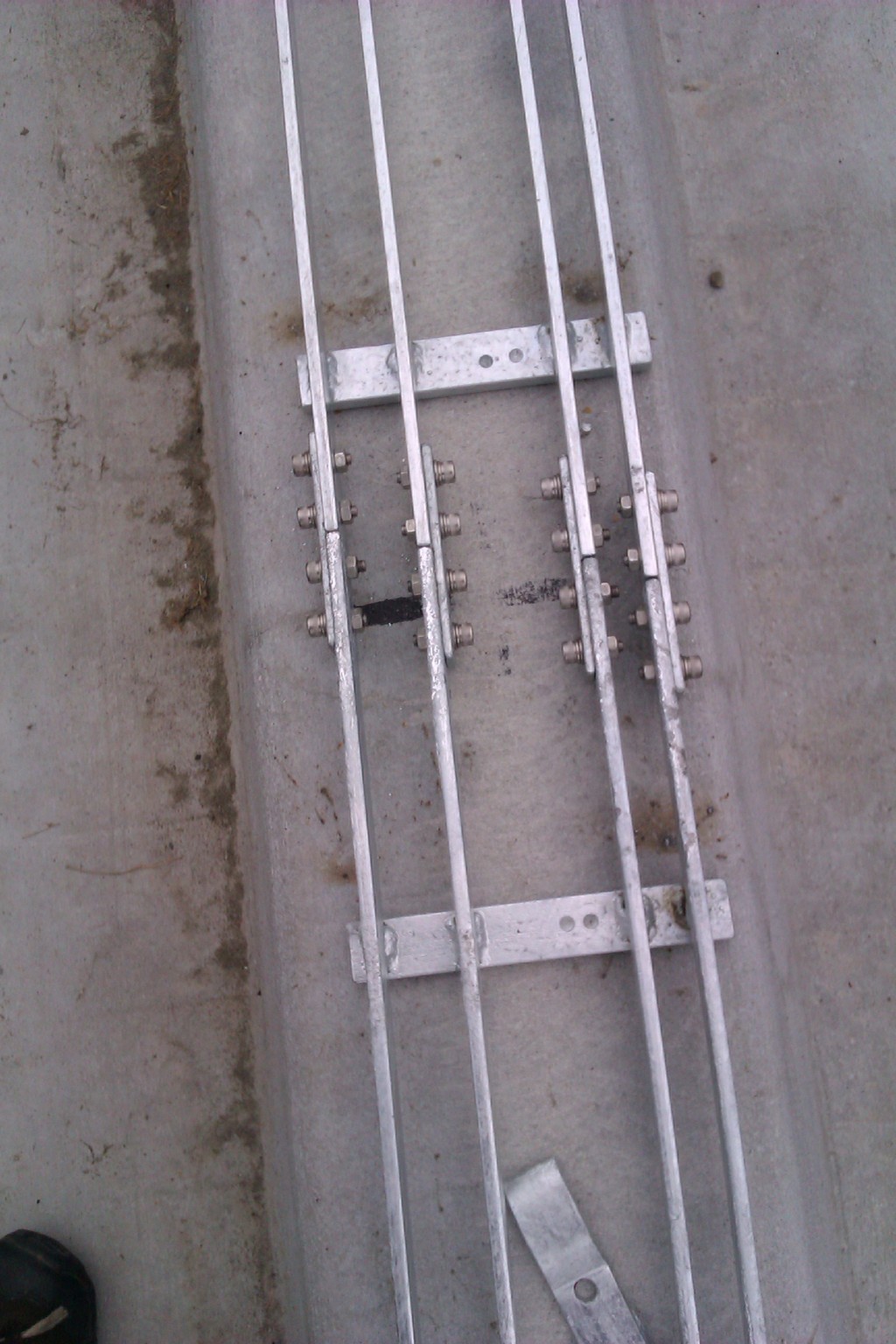

Close up of section joint

09 June 2012

The last curve before the station straight



9 June 2012

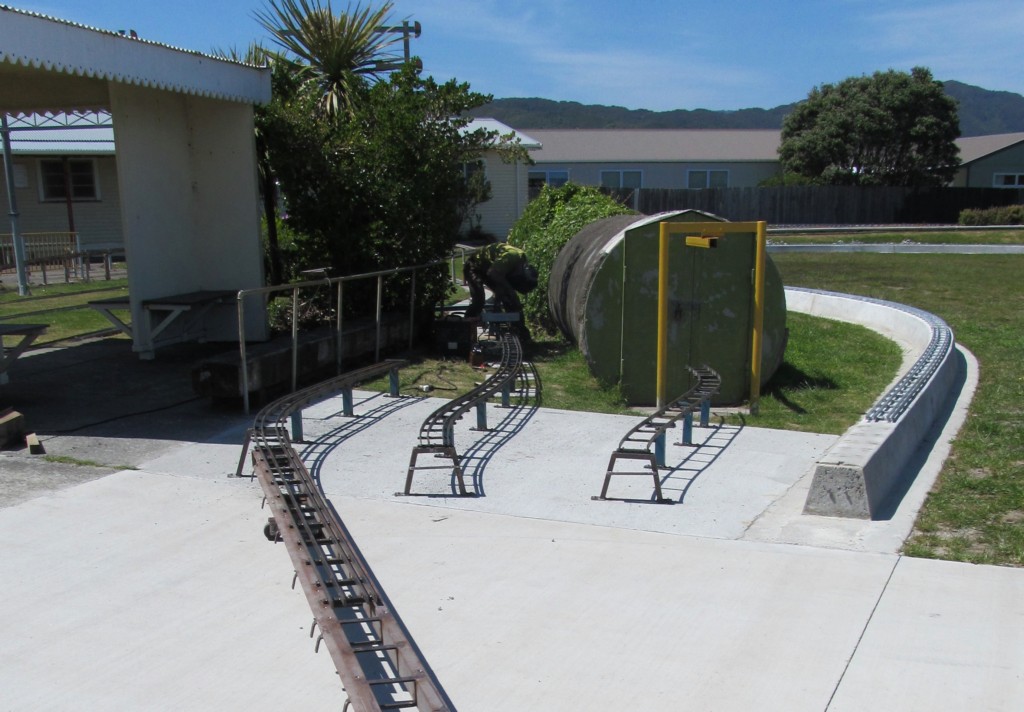

Preparing for the swing arm installation



1 November 2012

Swing arm in place and feeder tracks nearing completion.







11 December 2012

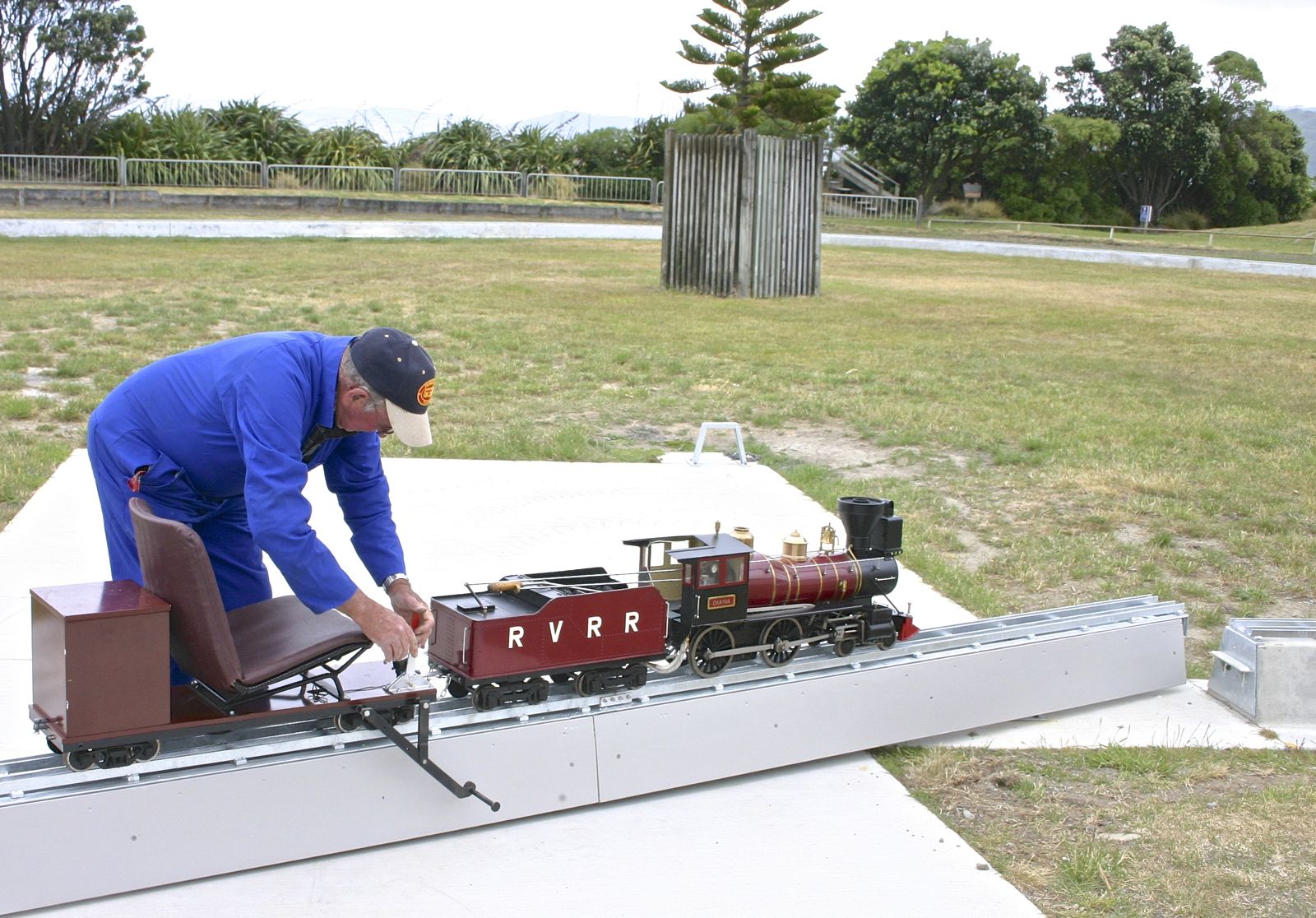

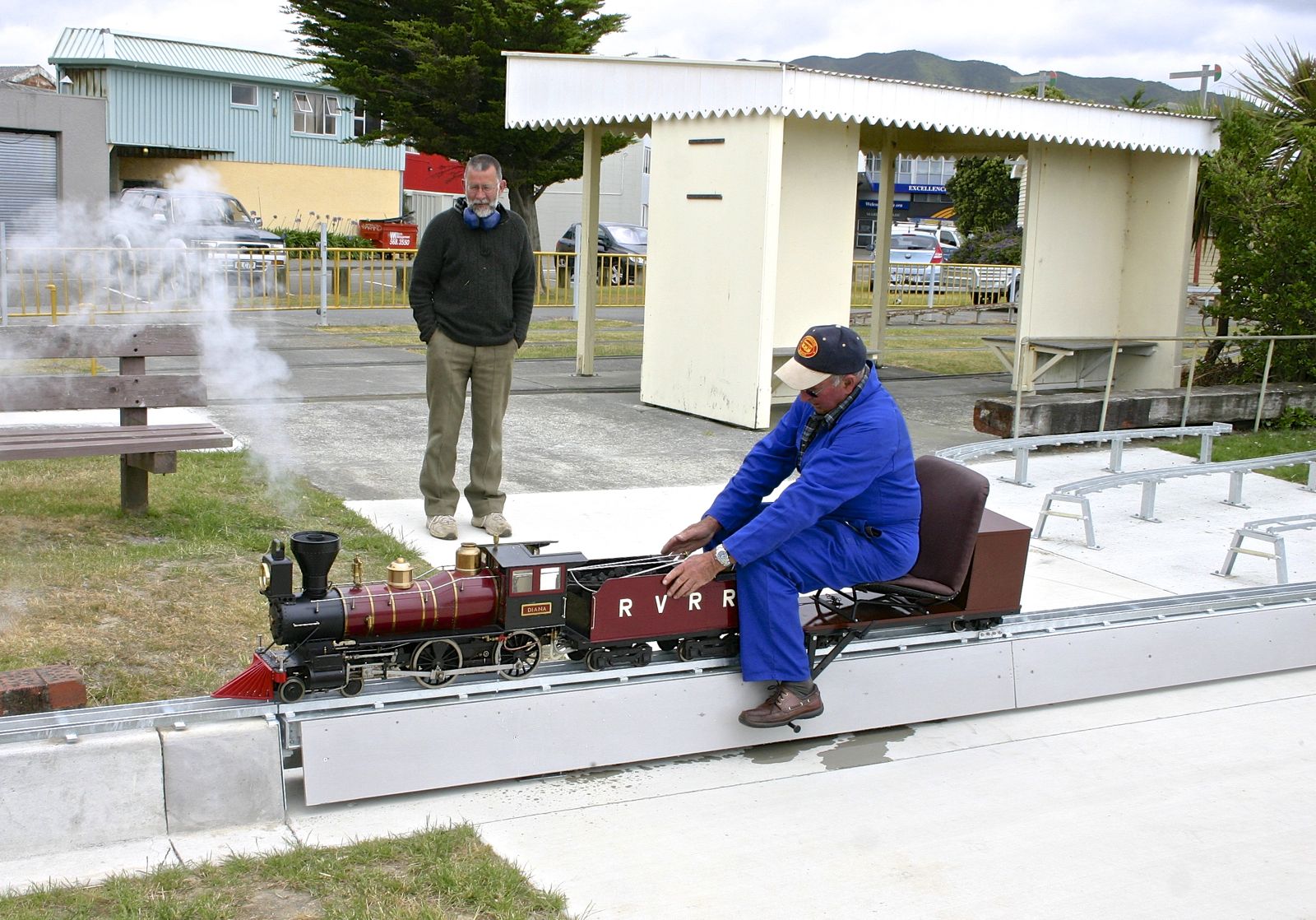

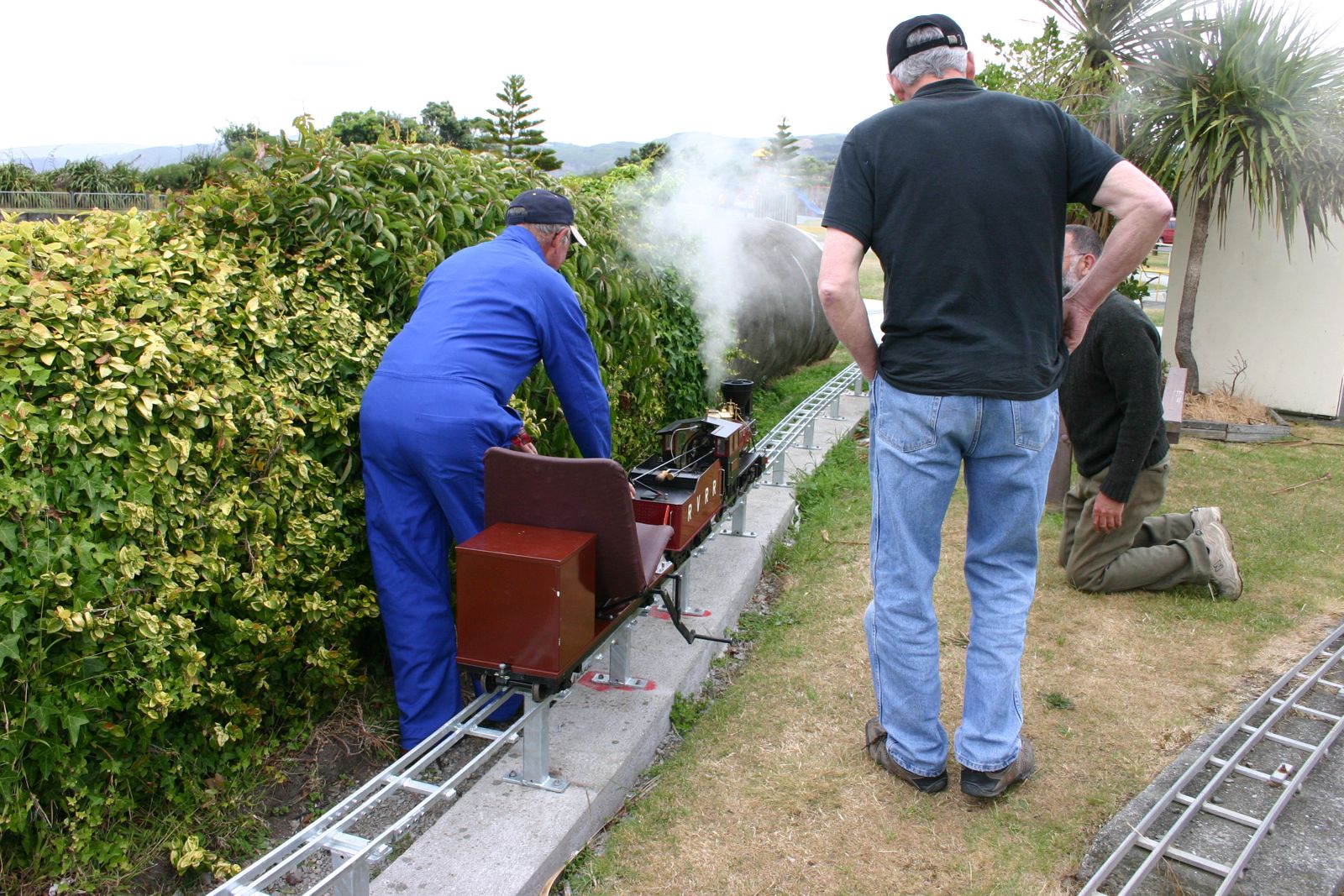

The unofficial opening as Diana makes her way down to the swing arm for the first run on the completed track

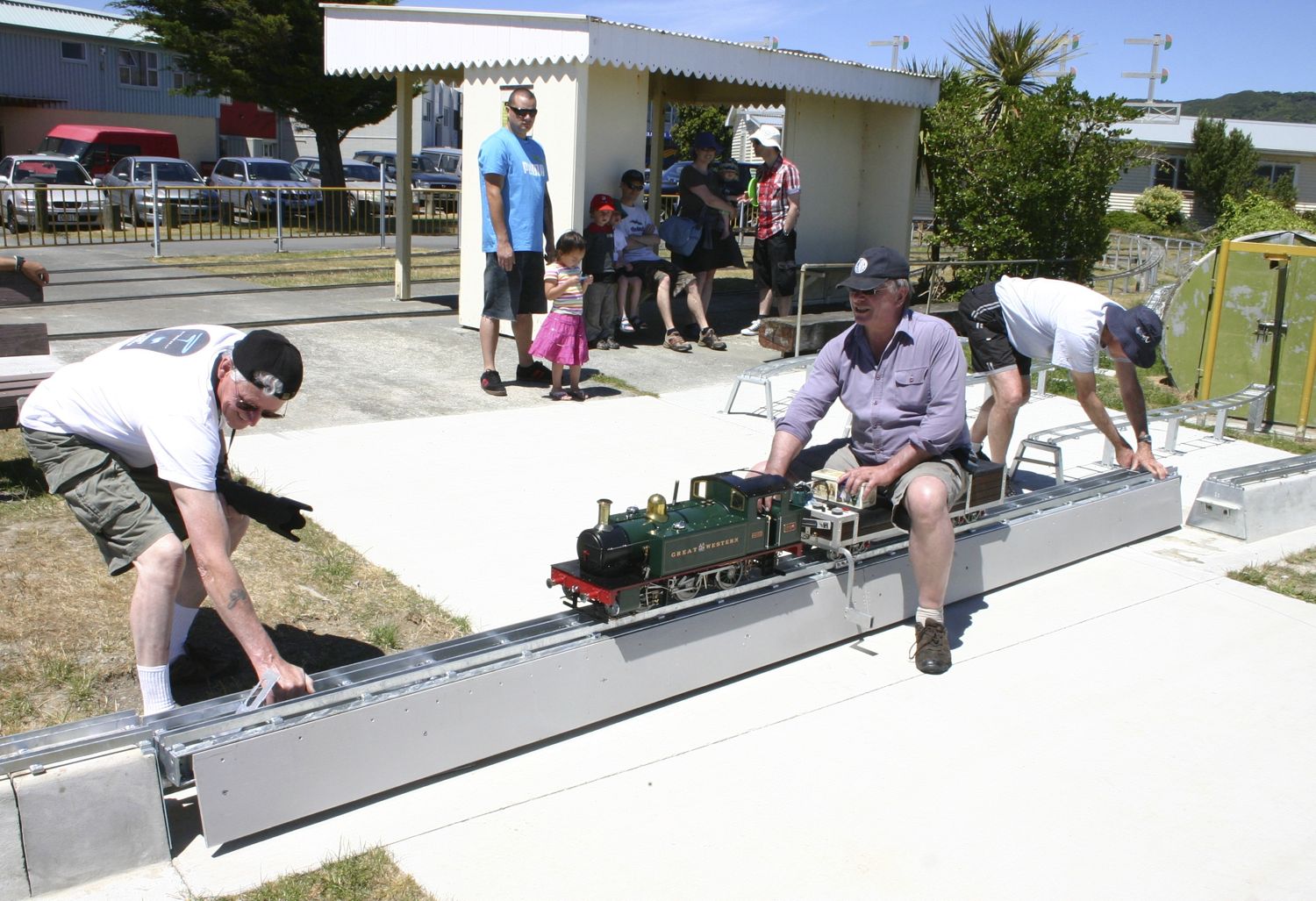

Moving the swing arm into position



David Grant-Taylor supervising the departure for the first circuit

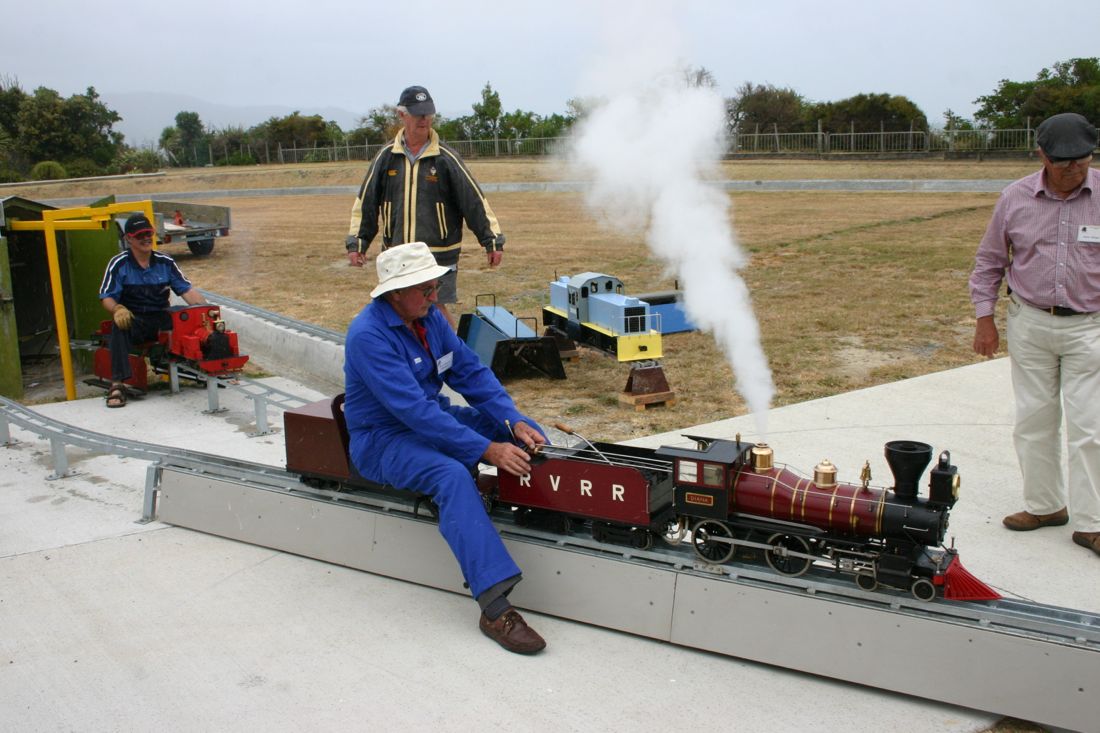

Plenty of steam before completing the circuit

David T, who did the bulk of the welding has his drive around.



  David G-T was talked into a circuit or two as well

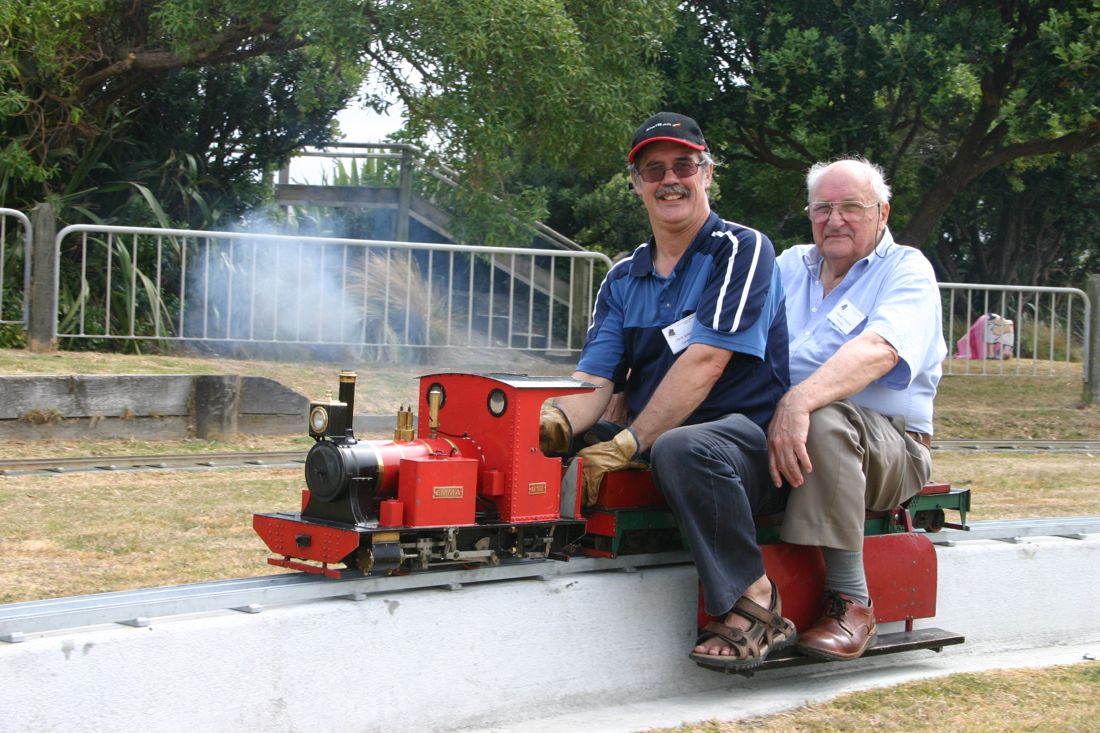

David and Peter Anderson ride behind Ross.

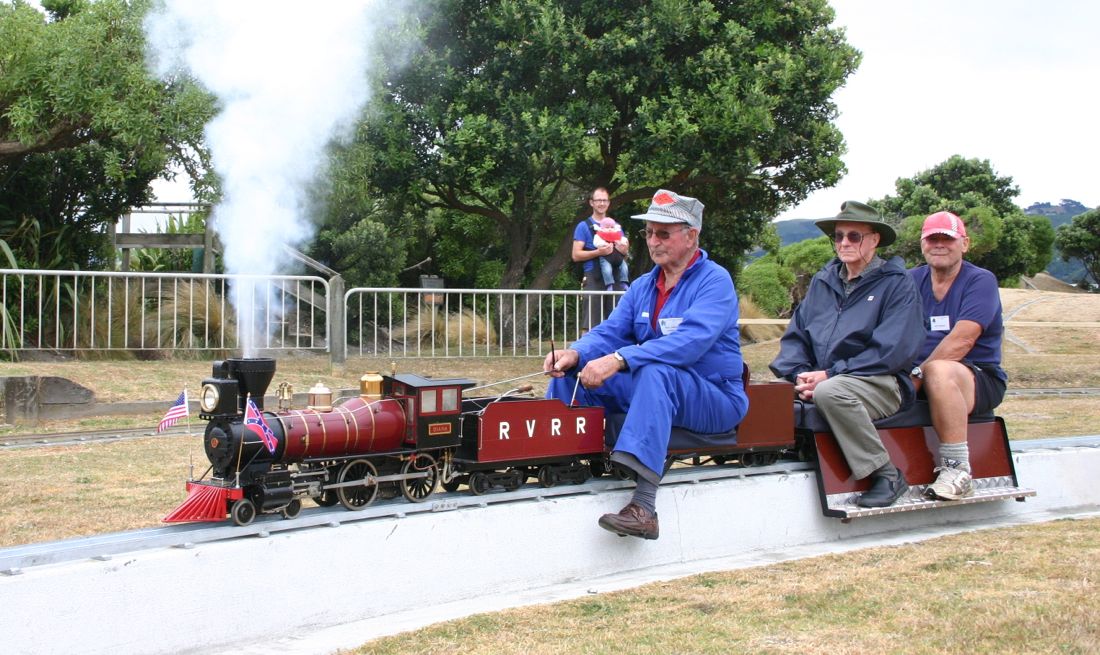

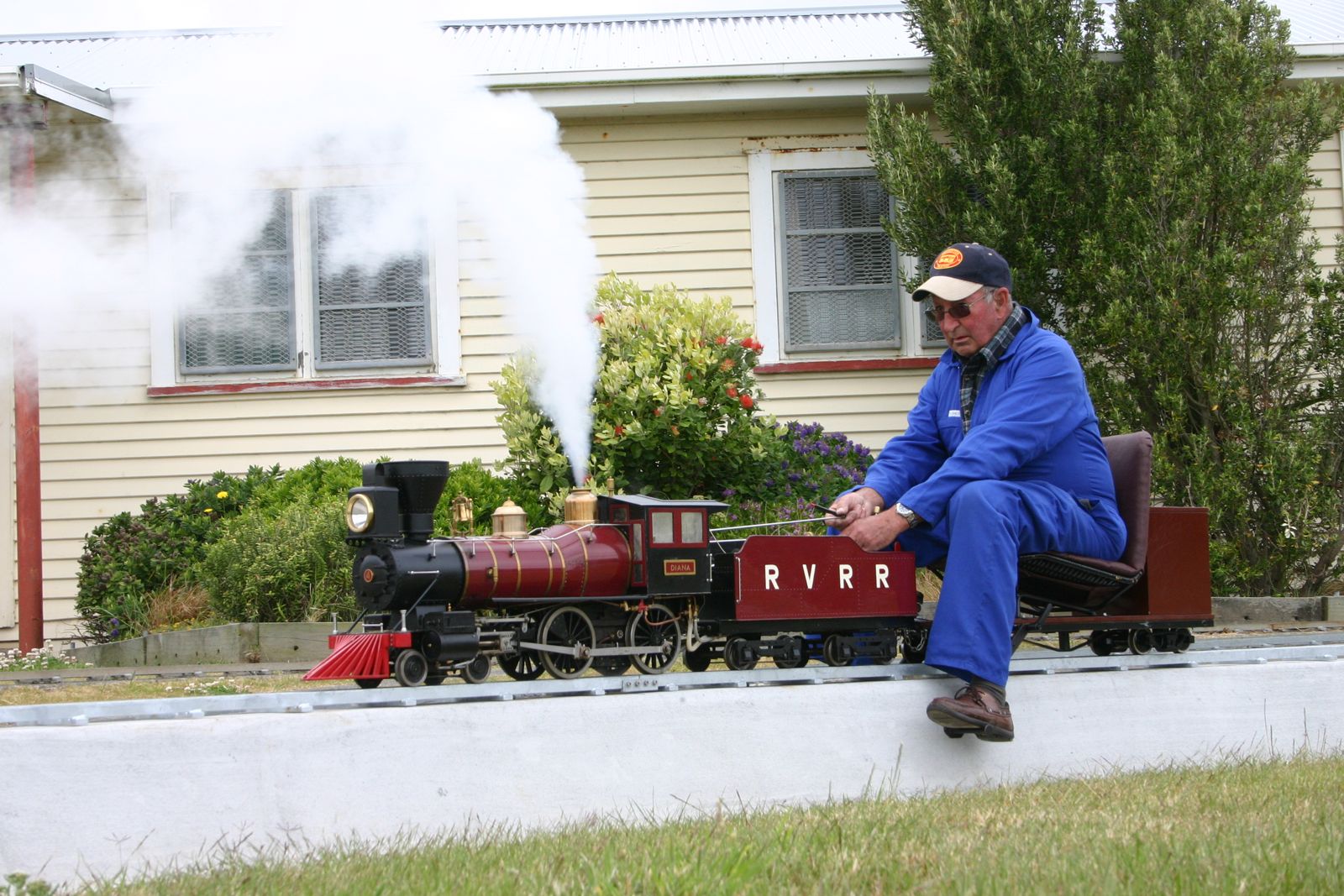

"Diana", "Maggie" and "Elva"  preparing for a day at the track



"Maggie" has her first day out

 The new track earning its keep with fare paying passengers

First run for "Belton Manor"

Dave directing operations Owain Glyndwr  and Maggie



The 7/25"guage supporting cast

Claude introducing the mayor Ray Wallace

The official opening by the Mayor

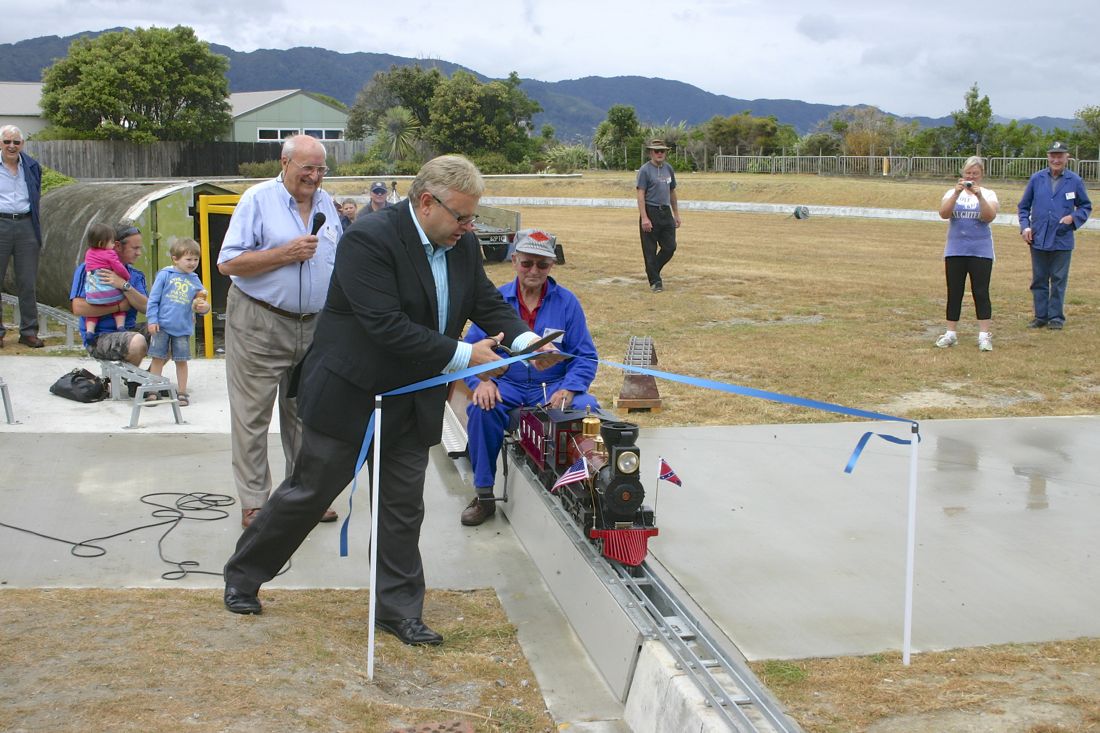

Ray Wallace cut the ribbon with our observing members spread out around the station area, Claude looking particularly  pleased.

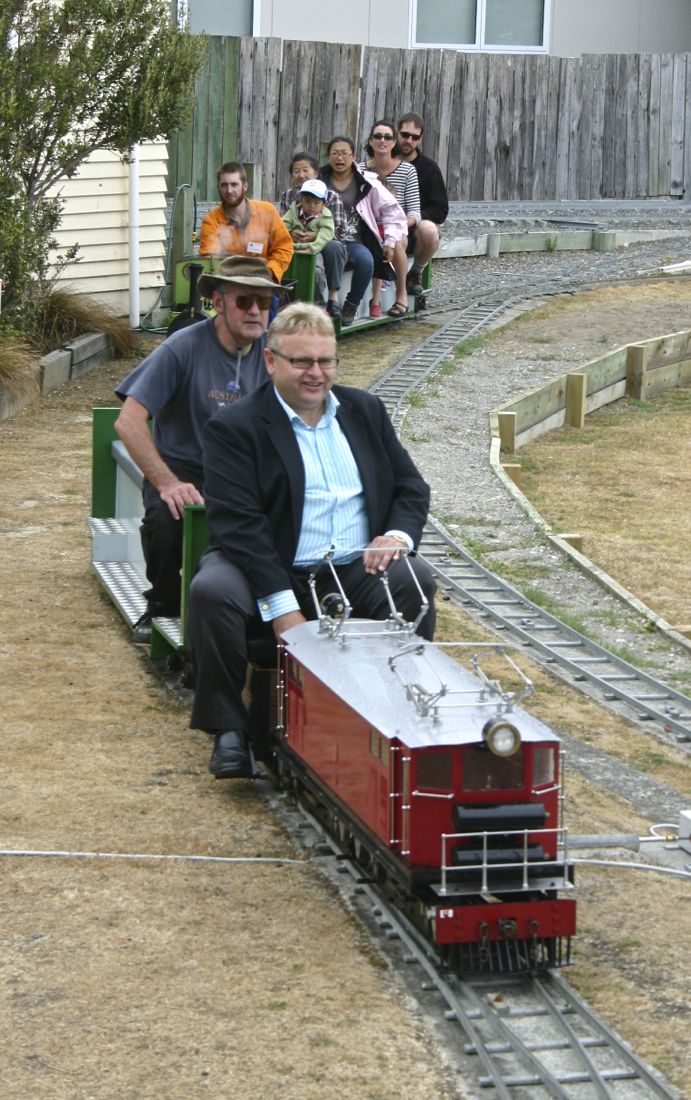

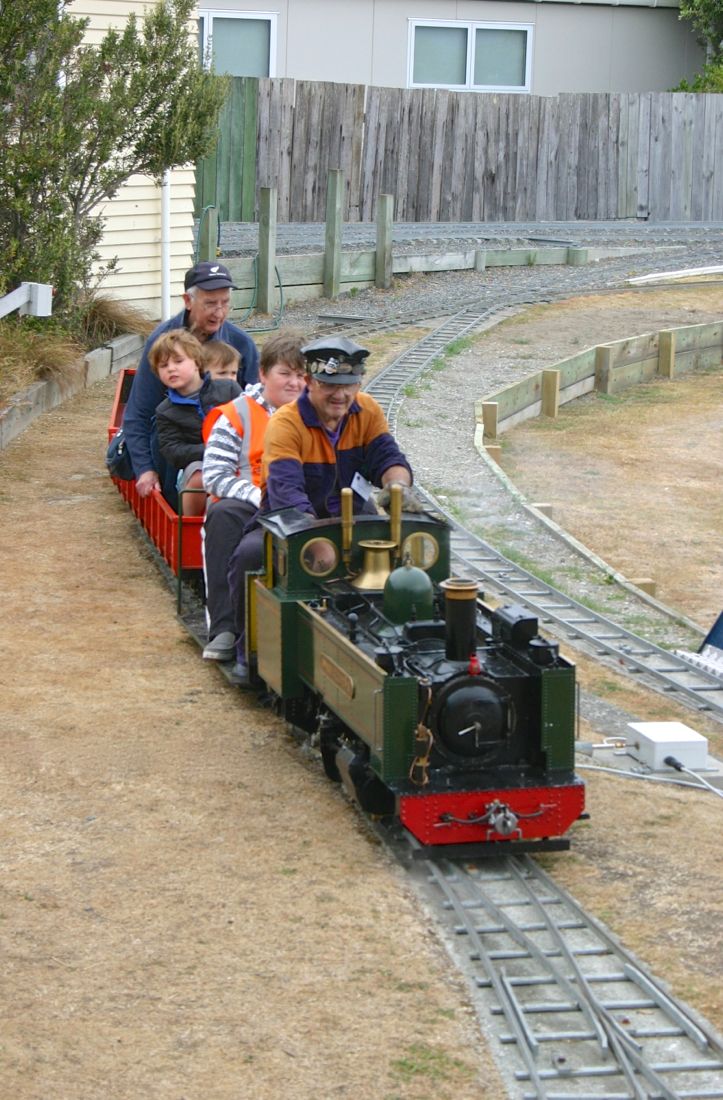

The Mayor and Shelley  took a ceremonial first lap behind Diana





Ross with Diana, took the previous owner, Trevor Watt, and the builder, Bob Walters, for a circuit behind ‘their’ loco.! ! !



Maggie and Dolgoch

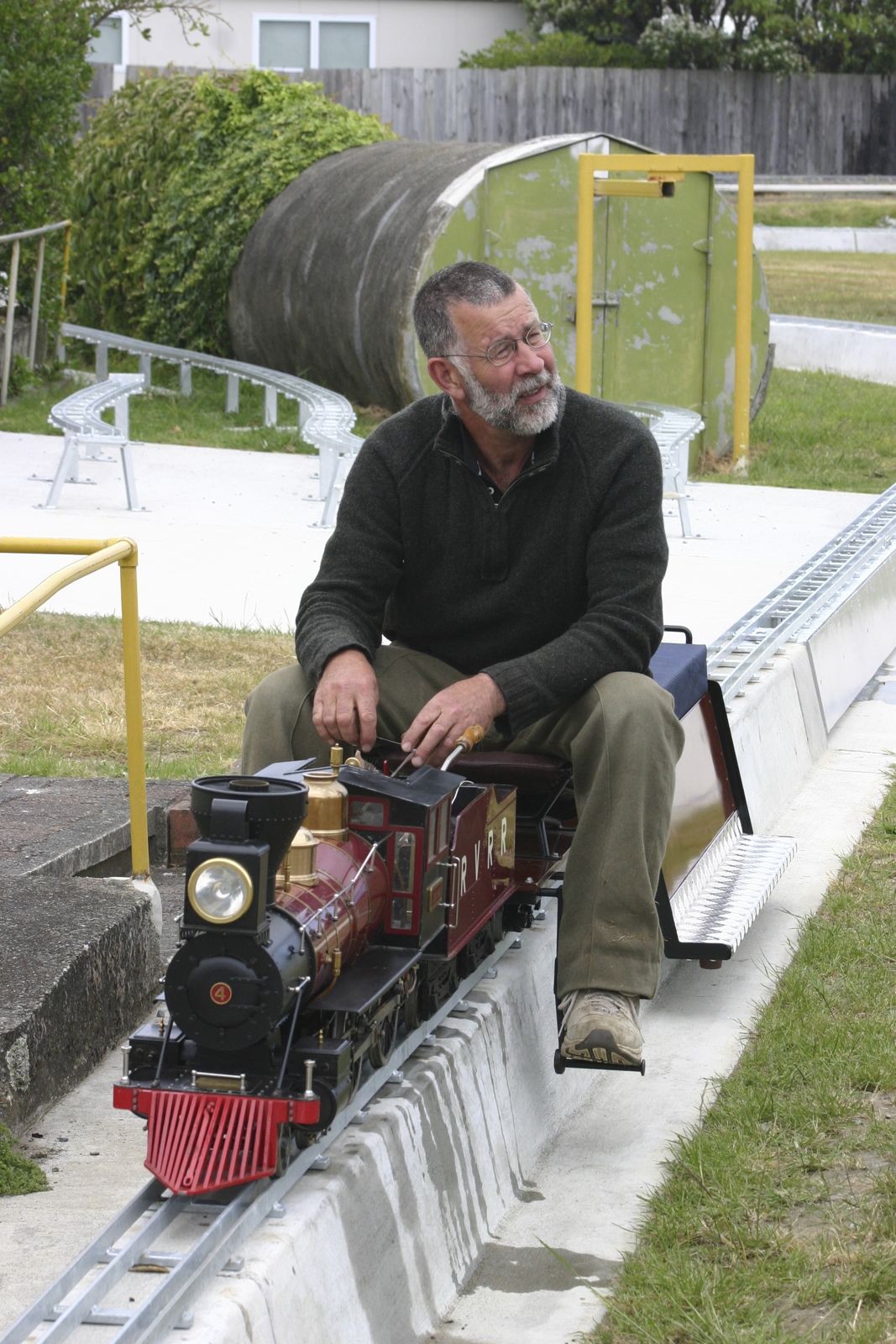

Peter’s 7½G “Owain Glyndwr” running so well, on our track for the first time

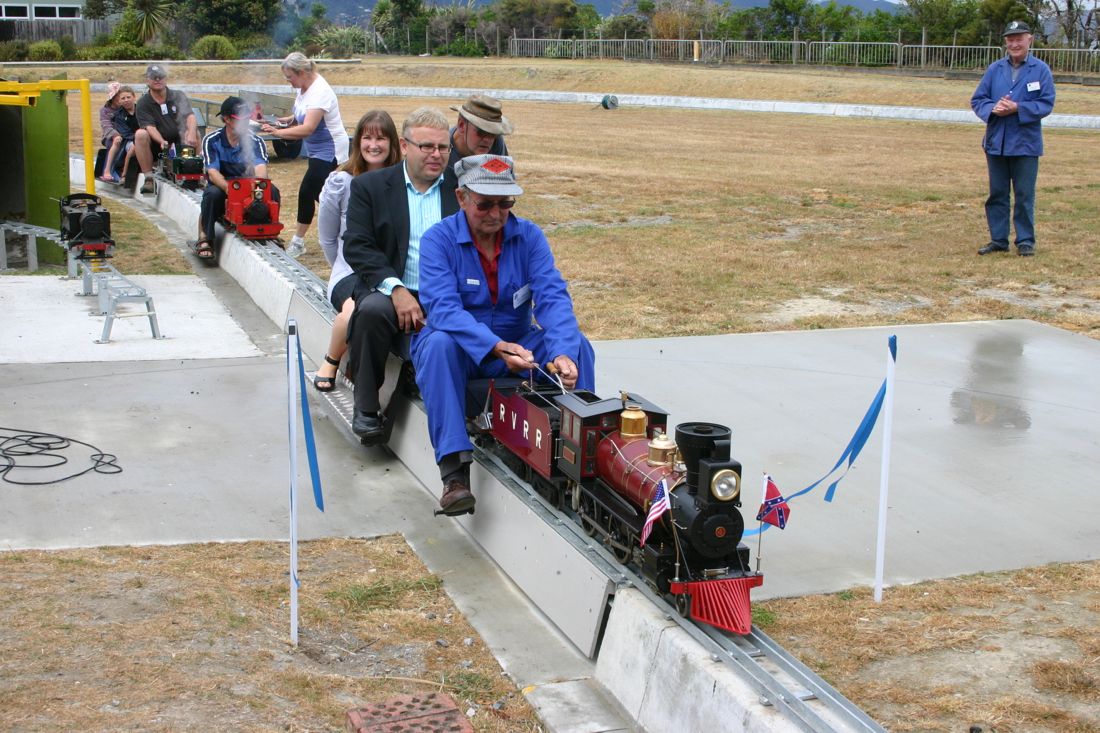

The Hutt City Council Mayor, Ray Wallace, rather enjoying driving Ec8 for a couple of circuits after performing the opening ceremony of our rebuilt raised track at Beach, Petone. Dolgoch  follows, but will have to wait for the time delay on the points  control before continuing.

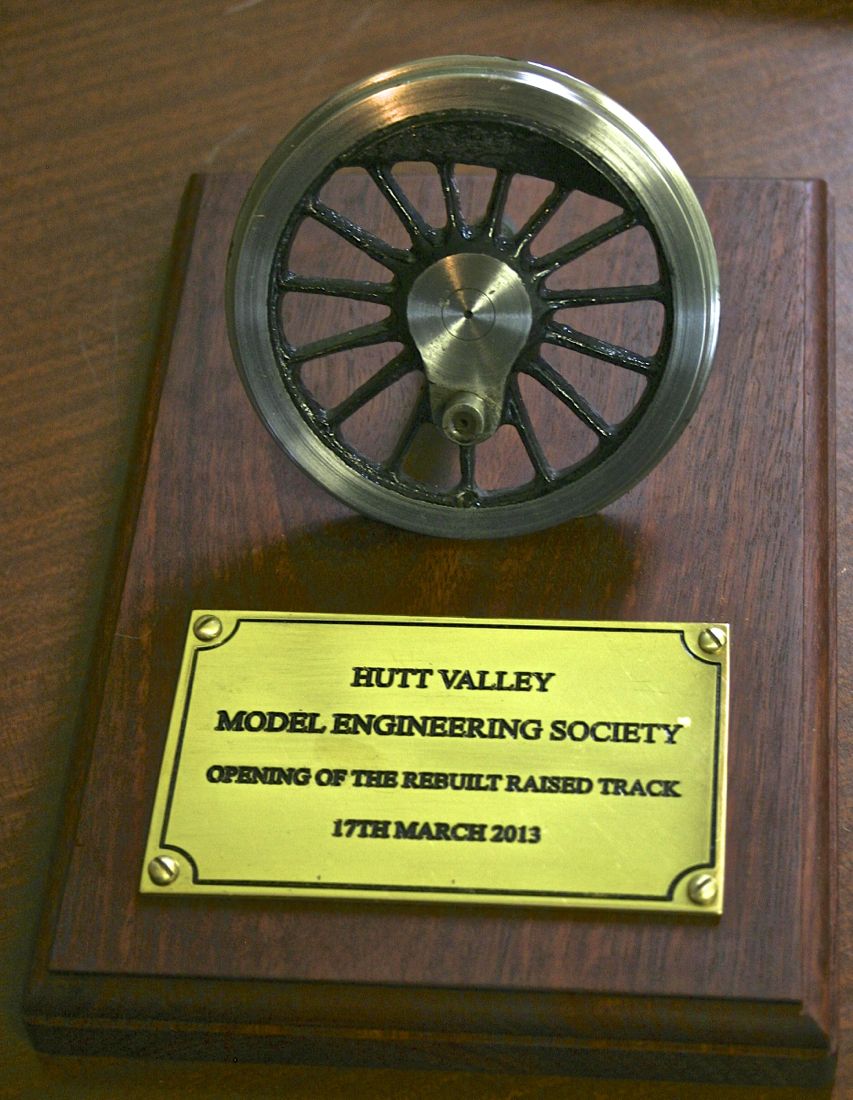

The money paper weight previously used in the ticket office. It will lead a different life now, in the Mayoral Office.

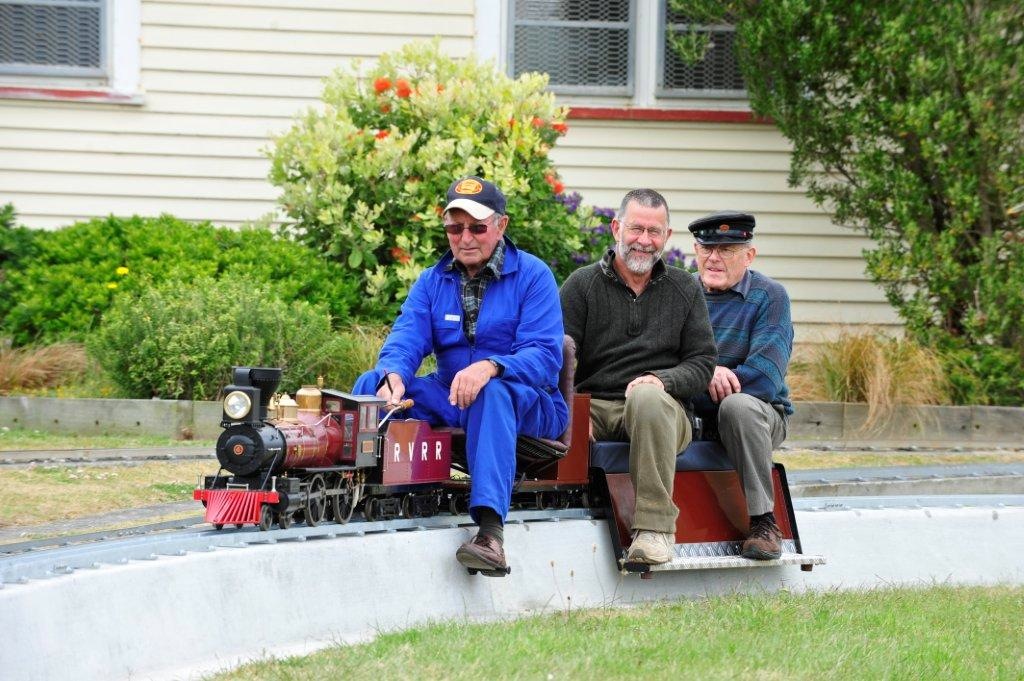

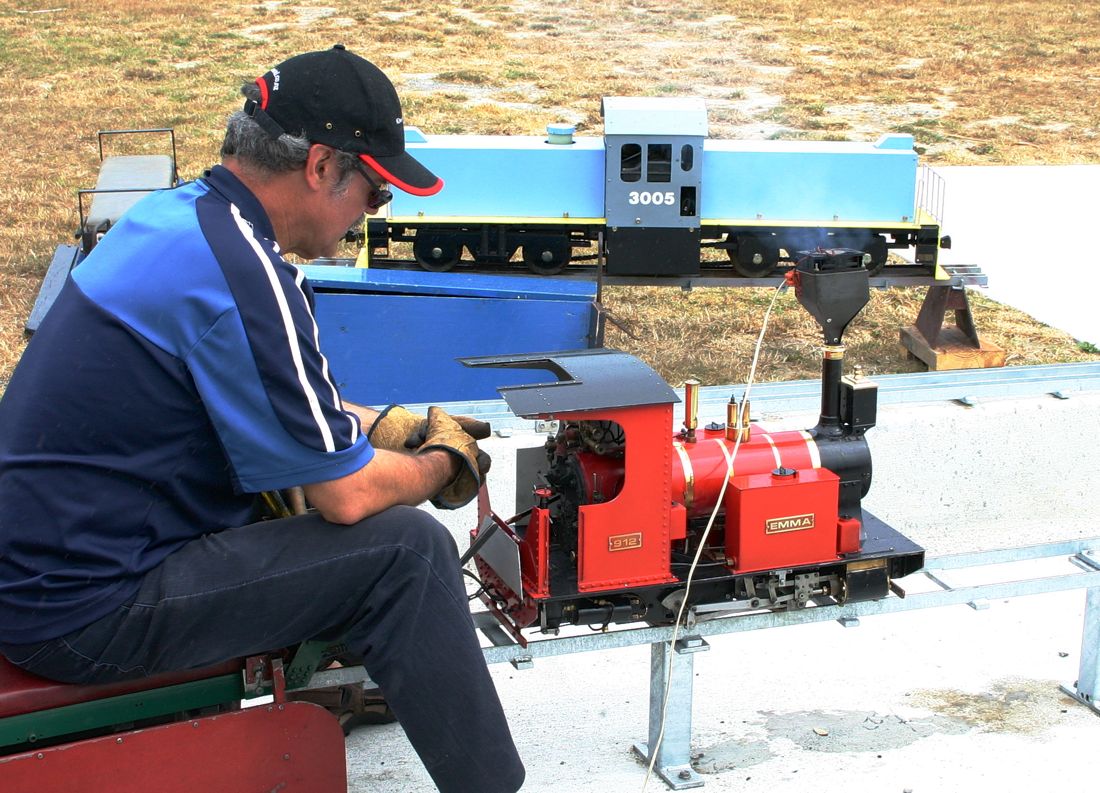

Claude relaxing at the end of the day with a run behind Emma with Chris
